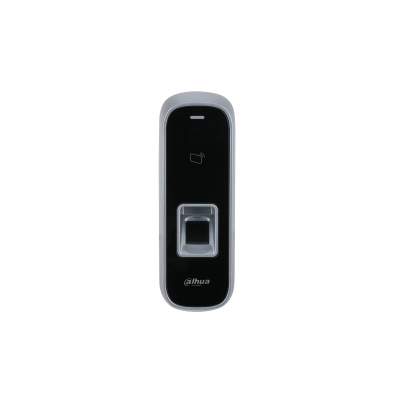

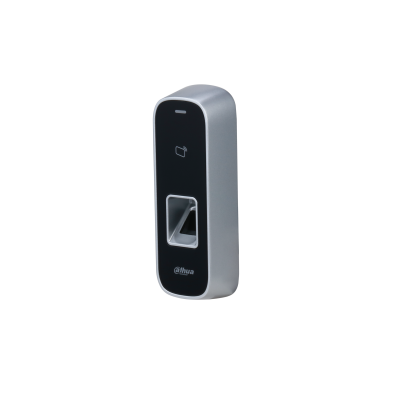

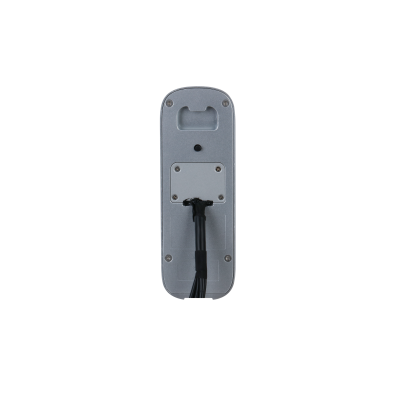

DAHUA Access Control Standalone Terminal

System

Main Processor

Embedded processor

Network Protocol

IPv4; TCP

OSDP Protocol

Yes

SDK and API

Yes

Basic

Appearance

All-in-one

Buzzer

Yes

Casing

Zinc alloy

Function

Unlock Mode

Fingerprint/Card unlock

Card Reading Type

IC or ID card

Period List

128

Holiday Period

128

Network Update

Yes

First Card Unlock

Yes

Remote Verification

Yes

Blacklist/Whitelist

Yes

Peripheral Card Reader

1 RS-485, 1 Wiegand

Multiple Authentication

Support card/fingerprint unlock

Real-Time Surveillance

Yes

Group Combination

Yes

Register

Yes

Performance

Card Reading Distance

1cm–3cm

Fingerprint Sensor Type

Optical

Fingerprint Verification

1:N

Fingerprint Comparison Time

≤1.5s

Fingerprint Recognition Time

≤0.5s

User

User (Card) Type

General user/VIP/patrol user/guest/blacklist user/special user

Capacity

User Capacity

30,000

Fingerprint Capacity

3,000

Card Capacity

30,000

Record Capacity

150,000

Port

RS-485

1

Wiegand

1 (input and output ports are the same)

USB

1 USB2.0 port

Network

1 RJ-45, 10Mbps/100Mbps self-adaptive

Alarm Input

1 (digital quantity)

Alarm Output

1 (relay)

Alarm Linkage

Yes

Exit Button

1

Door Status Detection

1

Lock Control

1, off by default

Bolt Detection

1, relay

Alarm

Anti-Passback

Yes

Tamper Alarm

Yes

Duress Alarm

Yes

Door Sensor Timeout

Yes

Intrusion

Yes

Illegal Card Exceeding Threshold

Yes

Duress Fingerprint

Yes

General

Power Adapter

Optional

Power Supply

12V DC 1A

Protection Grade

IP65 (Apply silica gel to gaps, for details, see the quick start guide.)
IK10

Power Consumption

≤1.8W (standby), ≤3W (working)

Product Dimensions

54.8mm×159.2mm×35.0mm (2.16"×6.27"×1.38")

Box Dimensions

206mm×106mm×97mm (8.11""×4.17""×3.82"") (Product box)
553mm×428mm×220mm (21.77""×16.85""×8.66"") (Protective box)

Operating Temperature

-30°C to +50°C (-22°F to +122°F)

Operating Humidity

5%RH–95%RH (non-condensing)

Operating Altitude

0m–1300m (0ft–4265.09ft)

Operating Environment

Outdoor

Net weight

0.7kg (1.54lb)

Gross Weight

0.79kg (1.74lb)

Accessory

Bracket

Installation

Surface mount

Certifications

CE
FCC
