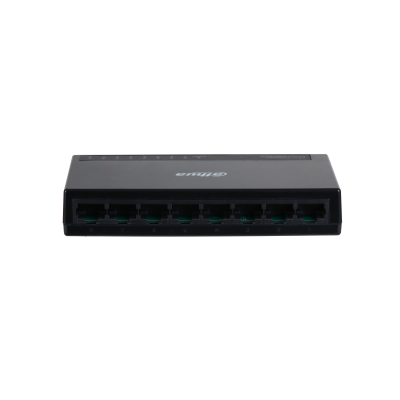

DAHUA 8-Port Desktop Gigabit Ethernet Switch
DAHUA 8-Port Desktop Gigabit Ethernet Switch
Couldn't load pickup availability
DAHUA 8-Port Desktop Gigabit Ethernet Switch
> Compact design: Miniature size and light weight make it easy to deploy
> Plug and play: No configuration required
> Green technology: Adopts high quality environmentally friendly plastics
> 7×24H: Stable performance for long-term operation
Specifications
-
Performance
Layer
Layer 2
Managed
No
Hardware
Standard Power Supply
Yes
PoE
No
Ethernet Port
8
Ethernet Port Rate
1 Gbps
Power Supply
5V/1A DC
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Operating Humidity
10%–90%
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Storage Humidity
10%–90%
Power Consumption
Idling: 0.81W
Full load: 4WPerformance
Switching Capacity
16 Gbps
Packet Forwarding Rate
11.9 Mpps
Packet Buffer Memory
1.5 Mbits
MAC Table Size
2K
Standards Compliance
IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x
General
ESD
Air discharge: 8kV
Contact discharge: 4kVThunderproof
Common mode: 2kV
Net Weight
0.11 kg (0.24 lb)
Gross Weight
0.22 kg (0.49 lb)
Dimensions
125 mm × 65 mm × 22 mm (4.92" × 2.56" × 0.87" )
Packaging Dimensions
128 mm × 77 mm × 78 mm (5.04" × 3.03" × 3.07" )
