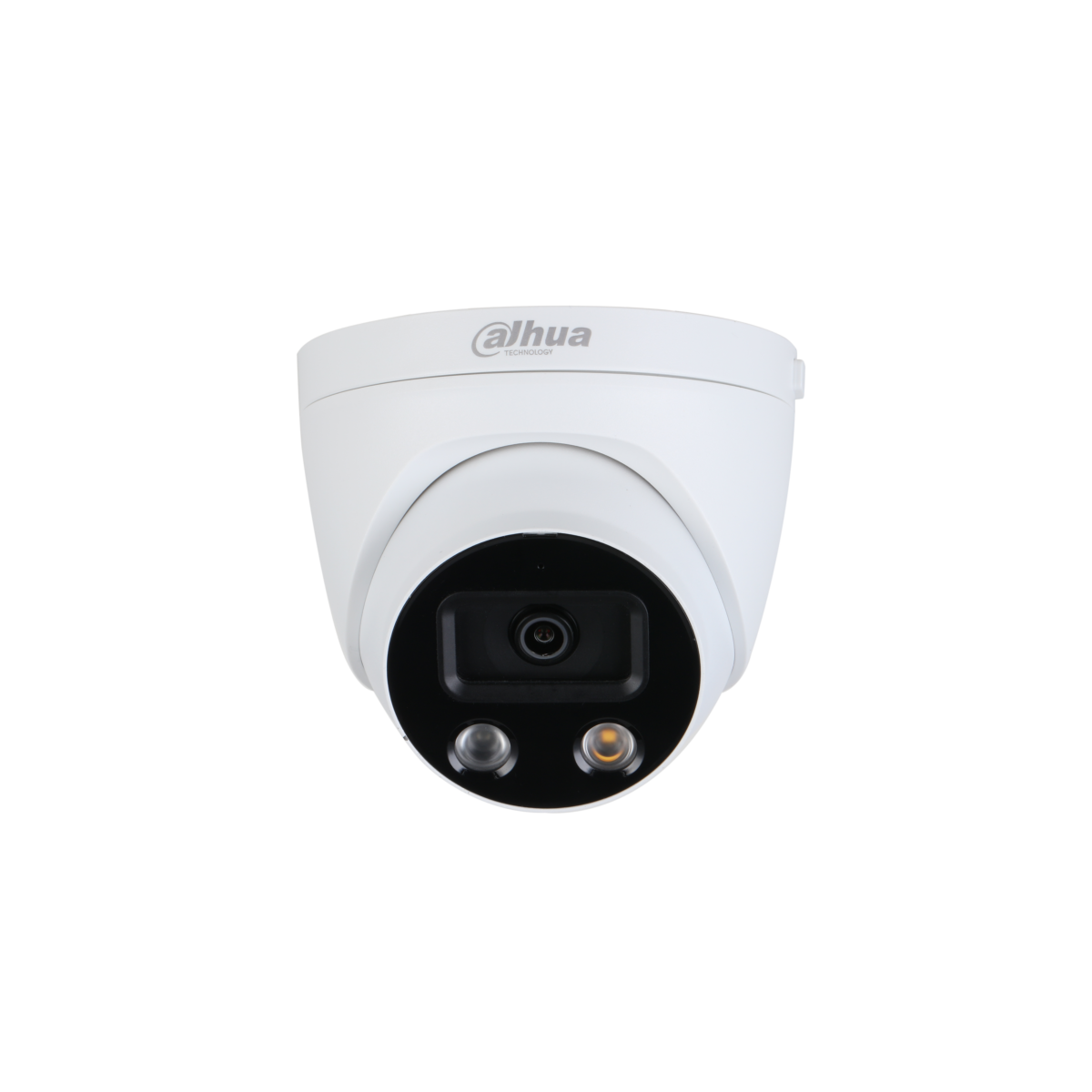

DAHUA 5MP WDR IR Eyeball AI Network Camera

Camera

Image Sensor

1/2.7” 5Megapixel progressive scan CMOS

Max. Resolution

2592 (H) × 1944 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

S/N Ratio

> 56 dB

Minimum Illumination

0.005 Lux@F1.6

Illumination Distance

Distance up to 50 m (164ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 IR, 1 LED

Lens

Lens Type

Fixed-focal

Mount Type

Board-in

Focal Length

2.8 mm, 3.6 mm, 6.0 mm

Max. Aperture

F1.6

Angle of View

H: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37°

Aperture Type

Fixed

Close Focus Distance

0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56m(184ft)

22m(72ft)

11m(36ft)

6m(20ft)

3.6mm

80m(262ft)

32m(105ft)

16m(52ft)

8m(26ft)

6.0mm

120m(394ft)

48m(157ft)

24m(79ft)

12m(39ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚

Artificial Intelligence

Perimeter Protection

Tripwire; intrusion; fast moving (the three functions

support the classification and accurate detection

of vehicle and human); loitering detection; people

gathering; parking detection

People Counting

Support the counting of enter number, leave

number, and pass number, and displaying and

outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules

configuration. Count number of people or stay time

and link alarm.

Support queue management, and 4 rules

configuration. Count number of people or stay time

and link alarm

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H,

MJPEG (only supported by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Streaming Capability

3 Streams

Resolution

2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 2592 × 1944 (1 fps–20 fps)

2560 × 1440 (1 fps–25/30 fps)

1920 × 1080 (1 fps–50/60 fps)

Sub Stream: D1 (1 fps–20/30 fps)

D1 (1 fps–50 fps)

Third Stream: 1080P (1 fps–17 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–8192 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Smart Illumination

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Audio Compression

G.711a, G.711Mu, G.726, AAC, G.723

Alarm

Alarm Event

No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management;White light alarm;Voice alarm (11 Built-in voices, and custom voices are supported

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

User/Host

20 Users

Storage

NAS;FTP;SFTP;Dahua Cloud;Micro SD card 256 GB

Browser

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out, Built-in MIC, Built-in Speaker

Alarm

1 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), PoE (802.3af)

Power Consumption

<7.2W

Environmental

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/Less than 95% RH

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67

Construction

Casing

Metal, plastic

Dimensions

Φ122 mm × 113.5 mm (4.80” × 4.47”)

Net Weight

0.49 kg (1.08 lb)

Gross Weight

0.65 kg (1.43 lb)
