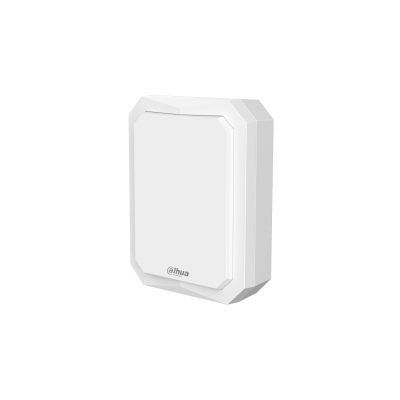

Dahua 120m Intrusion Detection Security Radar

Performance

Max. Target Number

64

Detection Distance

Human: 120.0 m (393.70 ft) Vehicle: 150.0 m (492.13 ft)

Detection Angle

Horizontal: 120° Vertical: 26°

Max. Detection Speed

40 km/h, continuous trajectory

Min. Detection Speed

0.6km/h, continuous trajectory

Distance Accuracy

± 1.5 m (± 4.92 ft)

Angle Accuracy

± 1°

Max. Area Number

10

Modulation Type

FMCW

Scan Frequency

10 Hz

Operating Frequency

24 GHz

Transmission Power

<20dBm (100mW)

Detection Target Type

Human and vehicle

Function

Radar+PTZ Smart Tracking

Supported on web manager

Track Mode

Tour, distance priority, and time priority

Region Setting

Alarm area, pre-warning area, and shield area

Environment Mode

General, shrub, and capacious

Target Filtering

Human and vehicle filtering

Channel Selections

Yes

Record Mode

Manual record, scheduled record, and alarm record Record priority: Manual>Alarm>Scheduled

Restore Default Settings

Restore default settings with one click

Security Mode

Authorized user name and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

Power Output

Support 12 V DC power output with maximum 165mA current and 12 V voltage

Map Encoding

Yes

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x

Interoperability

ONVIF Profile S&G, CGI

User/Host

19

Storage

NAS; local PC; micro SD card (256 G)

Browser

IE: Versions later than IE7

Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46

Port

Alarm Input

1 channel (support 5V DC potential and 5mA current)

Alarm Output

4 channels (wet contact; support max 12V DC potential and max 300mA current) 1 channel (dry contact; support max 30V DC potential and max 2A current, and max 250V AC potential and max 2A current)

Alarm Linkage

Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, and email sending

Alarm Event

Radar alarm, scene changing, no SD card, SD card capacity warning, SD card error, network disconnection, IP conflict, full disk, and illegal access

SD Card

Yes

Indicator Light

Network connection: Yellow

Running status: Red/Green Power: Green

Power

Power Supply

DC 12V (±30%), AC 24V (±30%), PoE (802.3at)

Power Consumption

Basic: 12W

Max.: 14W

Environment

Operating Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤95% (RH)

Storage Temperature

–40°C to +80°C (–40°F to +176°F)

Storage Humidity

≤95% (RH)

Ingress Protection

IP67/IK09

ESD

Contact discharge: 6k

Air discharge: 8k

Surge Protection Grade

Common mode: ± 6kV Differential Mode: ± 2kV

Structure

Color

White

Casing

ADC12+PC

Product Dimensions

204.9 × 157.9 × 67.1 mm (8.07" × 6.22" × 2.64")

Packaging Dimensions

256.0 × 208.0 × 171.0 mm (10.08"× 8.19" × 6.73")

Net Weight

1.7 kg (2.20 lb)

Gross Weight

2.2 kg (4.85 lb)

Installation Method

Wall-mounted, ceiling-mounted, pole-mounted

Installation Height

3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended)

Installation Position

Separate or integrated installation

Certification

Certifications

CE:EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1
CE RED: EN 300440
FCC: FCC Part 15 Subpart B: 2018; ANSI C63.4: 2014
FCC ID: FCC 47 CFR Part 15C
