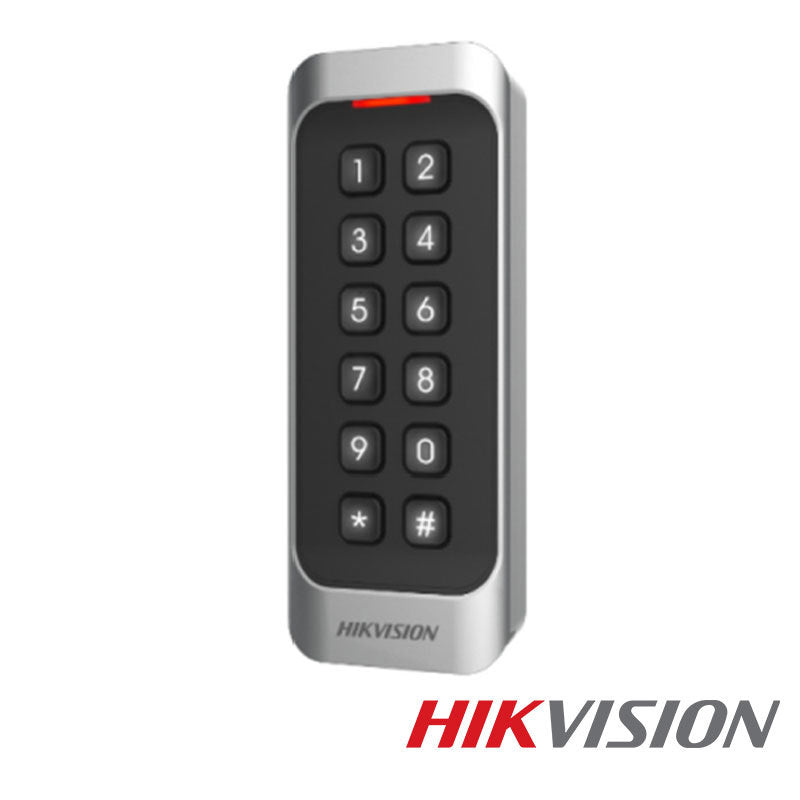

Hikvision outdoor keypad and Mifare card reader

Hikvision outdoor keypad and Mifare card reader

• Mifare1/ EM card reader
• Built-in audible beeper
• RS-485， Wiegand (W26/W34) protocol, and OSDP protocol
• IP65

Specifications:

• System
• Processor32-bit

• Interface
• TAMPERsupport
• RS-485support
• Wiegandsupport

• Authentication
• Card Reading Distance≤50mm (≤1.97")

• Function
• ID Settingsvia DIP Switch

• General
• IndicatorPower Indicator, Status Indicator
• Power Supply12V DC
• Power Consumption≤2W
• Working Temperature-20°C to +65°C (-4°F to 149°F)
• Working Humidity10% to 90% (Non Condensing)
• Protective LevelIP65
• Dimensions115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)

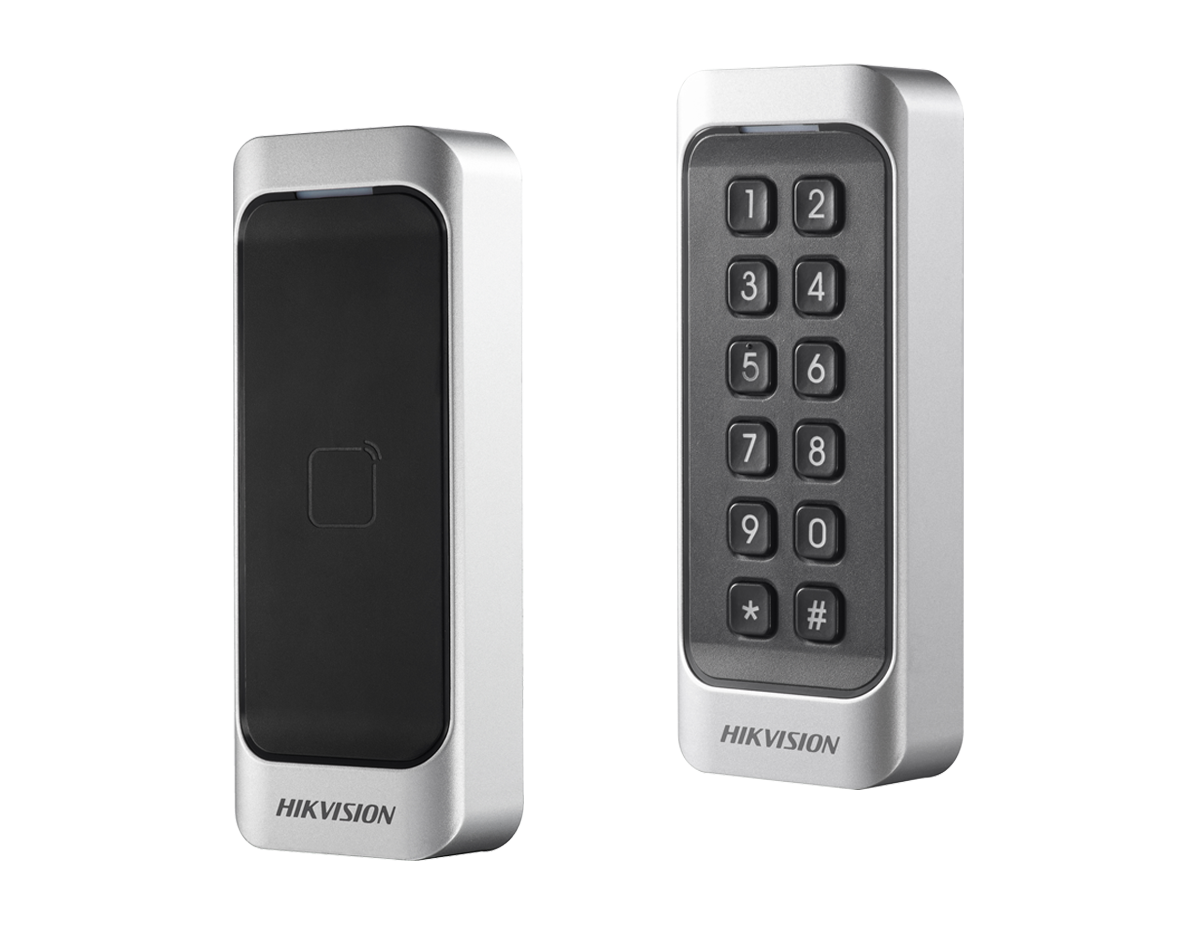

• KeypadNo Keypad (DS-K1107E and DS-K1107M)Keypad with 12 Keys (0~9, *, #) (DS-K1107EK and DS-K1107MK)
• Buzzersupport
