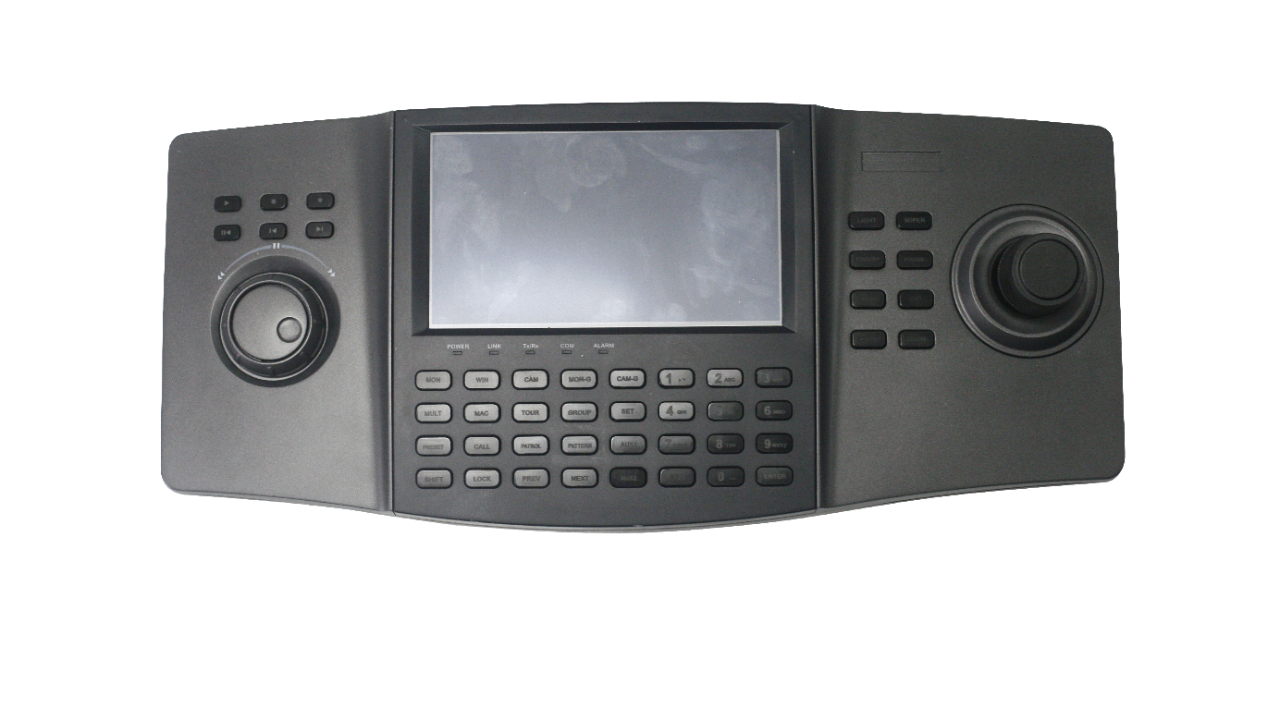

Hikvision LCD Touch Panel Network Keyboard

Hikvision LCD Touch Panel Network Keyboard

• Divide video wall into regions to manage video wall by region
• open/close window, move window, resize window, divide window, and enlarge/narrow sub-window.
• Group and macro
• Preview camera live image on network keyboard touchscreen
• Quickly switch to the previous/next camera
• Control speed dome movement via joystick
• Play the decoder videos on video wall
• Play the video recorder videos on network keyboard touchscreen. Supports clipping and capturing during playback
• Add devices via SDK or ONVIF protocol
• HikCentral and KPS platforms access
• Support up to 32 users (1 administrator and 31 operators) and 4,000 devices
• Add/modify/delete cameras in batch
• Import/export configuration file

Specifications:

• System
• Operating SystemLinux

• Interface
• Network Interface1 × 100M/1000M self-adaptive network interface
• USB Interface1 × USB 2.0 interface
• Audio Interface1 video input and 1 video output of 3.5 mm audio jack. Supports two-way audio
• Video InterfaceNot supported
• Serial Interface1 × RS-232, 1 × RS-485

• Performance Parameter
• Decoding FormatH.264, H.265, MPEG4
• Decoding Capability4@1080p
• Screen SplitSingle screen

• General
• Dimension (W × H × D)193 × 110 × 435 mm ( 7.6" × 4.3" × 17.1")
• 2 KG (4.4 lb)
• Power Supply12 VDC
• Screen7" TFT LCD at 1024 × 600 resolution
• Joystick4D joystick

• Power
• Power Consumption≤ 15 W

• Environment
• Working Temperature-10 °C to +55 °C (14 °F to 131 °F)
• Working Humidity10％ to 90％
