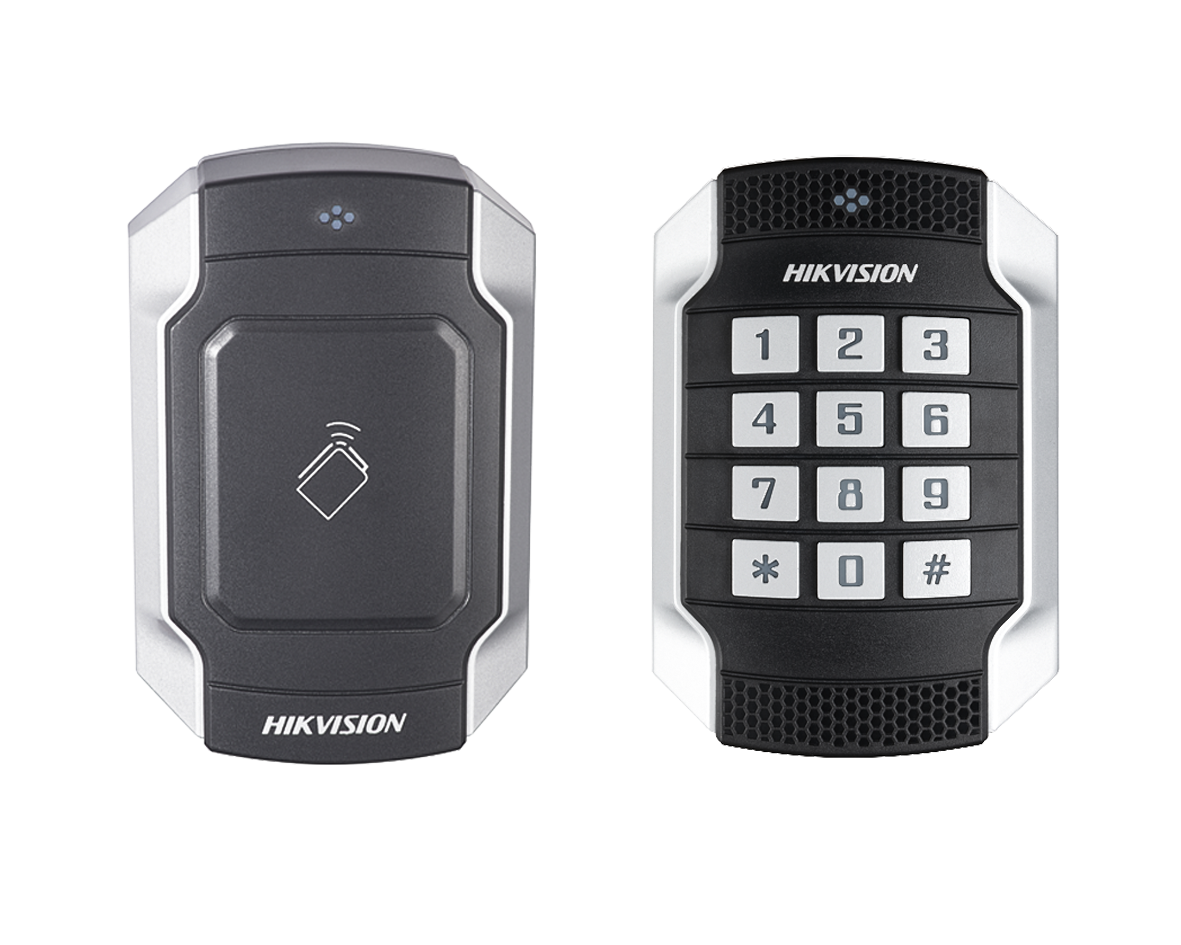

Hikvision outdoor vandal-resistant keypad and Mifare card reader

Hikvision outdoor vandal-resistant keypad and Mifare card reader

• Mifare 1 card reader
• PC+zinc-alloy material shell
• Built-in audible beeper
• RS-485 and Wiegand interface
• IK10

Specifications:

• System
• Processor32-bit

• Authentication
• Card Reading Frequency13.56MHz
• Card Reading Distance≤50mm (≤1.97")

• Function
• ID Settingsvia DIP Switch

• General
• IndicatorPower Indicator; Status LED Indicator
• Power Supply12V DC, ≤500mA
• Power Consumption≤2W
• Working Temperature-20°C to + 65°C (-4°F to + 149°F)
• Working Humidity10% to 90% (Non Condensing)
• Protective LevelIP65
• Dimensions118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
• InstallationApplied for 86 & 120 Gang Box
• ≤ 0.52kg
• ApprovalFCC, CE

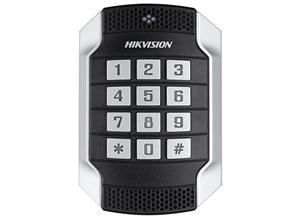

• KeypadNo Keypad (DS-K1104M)Keypad with 12 Keys (0 to 9, *, #) (DS-K1104MK)
• Buzzersupported
