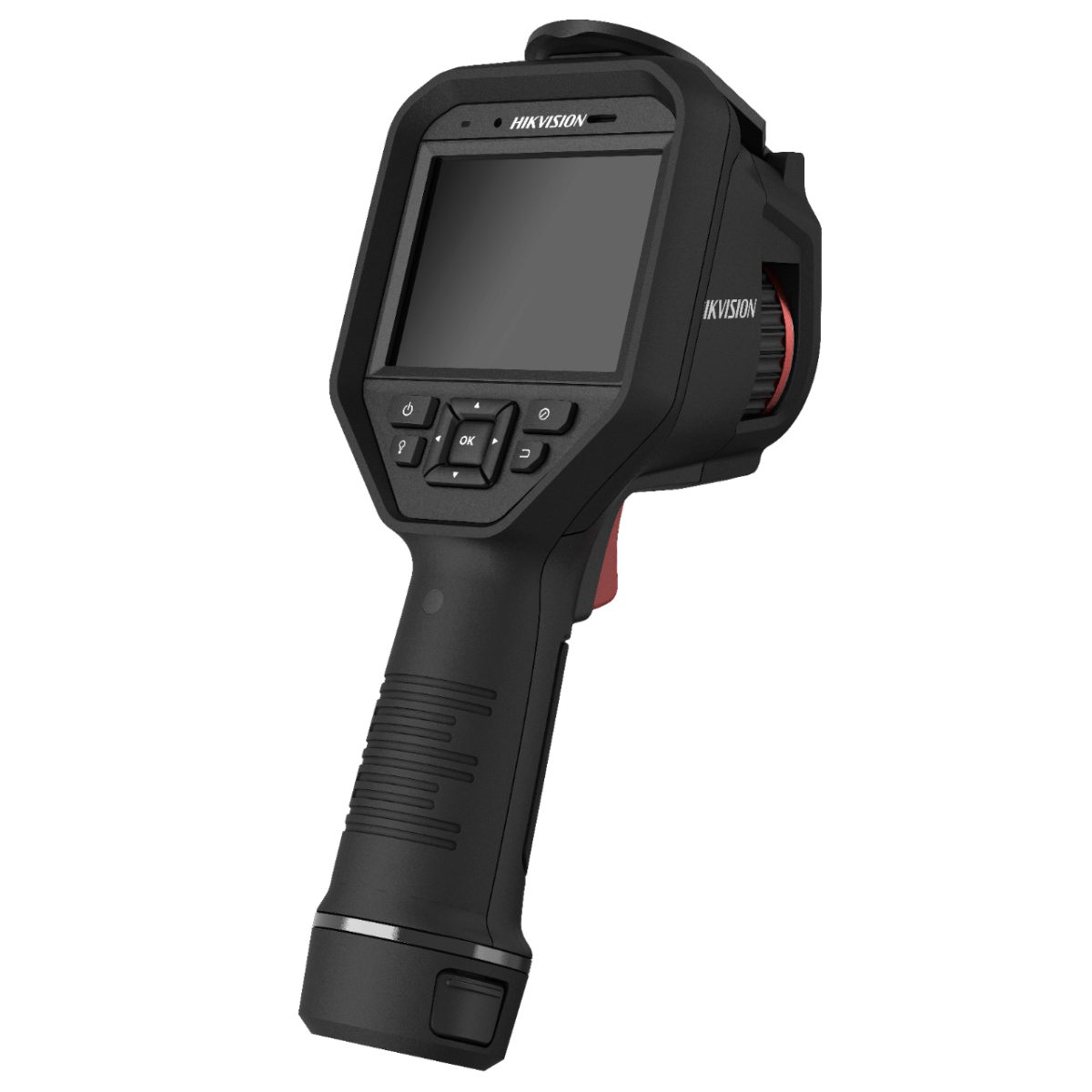

Hikvision Fever Screening Thermographic Handheld Camera

Hikvision Fever Screening Thermographic Handheld Camera

• 160 × 120 resolution (thermal), and 8 MP resolution (optical)
• 640 × 480 resolution 3.5” LCD touch display
• Up to five hours continuous running in 25℃
• Temperature measurement range: 30°C to 45°C
• Temperature measurement accuracy: ±0.5°C(Without Black Body); ±0.3°C(With Black Body)

Specifications:

• Thermal Module
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution160×120
• Pixel Interval17μm
• Response Waveband8μm to 14μm
• NETDLess than 40 mK (@25°C,F#=1.1)
• Focal Length6.2mm
• Focus ModeManual
• Field Of View25° × 18.7°
• IFOV2.74 mrad
• Image Frequency25 hz
• ApertureF 1.1

• Optical Module
• Picture ResolutionConfigurable: 2 MP, 5 MP, 8 MP
• Video Resolution640 × 480

• Image Display
• Monitor640 × 480 resolution 3.5-inch LCD touch display
• Image ModeThermal view, B/W optical view, image fusion view are selectable
• PalettesBlack hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
• Image FusionFusion view of thermal view and overlaid details of the optical channel
• Digital ZoomThermal：1×, 2×, 4×

• Measurement And Analysis
• RulesMax. Temperature; Min. Temperature; Center Temperature; Custom Point/Line/Area Thermography
• Thermographic RangeFrom 30 °C to 45 °C
• Accuracy± 0.5 °C (Without Black Body);± 0.3 °C (With Black Body)

• General
• Hardware InterfaceType-C USB
• Power Supply5 VDC/2 A
• Power ConsumptionMax. 4.5 W
• Working Temperature10°C to 35 °C
• Protection LevelIP54
• Drop Test Height2 m (6.56 feet)

• With Battery: 653 g (1.44 lb)

  Without Battery: 511 g (1.13 lb)

• Dimension244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)

• System Function
• CaptureThermal/Optical/Fusion image
• VideoThermal/Optical/Fusion image
• Text CommentYes
• Voice CommentYes
• Wi-FiYes
• StorageReplaceable memory card (default 16G, support up to 128G storage)
• ClientiVMS-4200 (PC);Hik-Thermal (Mobile APP)
• Battery TypeDismountable and rechargeable Li-ion Battery
• Battery Operating Time

  5 hours in 25℃, with Wi-Fi and Bluetooth off.

  4 hours in 25℃, with Wi-Fi and Bluetooth on.
