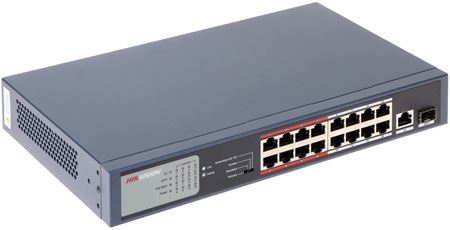

Hikvision 16-Port 100 Mbps Unmanaged PoE Switch

Hikvision 16-Port 100 Mbps Unmanaged PoE Switch

• 16 x 10/100 Mbps PoE ports, 2 x 10/100/1000 Mbps combo uplink ports
• IEEE 802.3 af & at high PoE power supply
• Maximum 250 m long distance PoE transmission
• VIP port transmission priority
• Safe and reliable using 6 KV high surge protection
• Supports store-and-forward
• Supports MAC address auto learning and auto aging
• Supports smart cache optimization
• Supports desktop / wall mounting.

Specifications:

• General
• Storage TemperatureTemperature: -40℃-70℃
• Power Supply100-240V AC, 50/60Hz
• 3.72kg
• Storage HumidityHumidity: 5%-90% , non-condensing
• Surge Protection4KV
• Power Consumption≤250W

• Performance
• Switching Capacity7.2Gbps
• Store-And-ForwardStore-and-forward
• Max. Forwarding Rate5.36Mpps

• PoE
• Working ModeExtend On:250m,10M,CAT 5e, Extend Off:100m
• PoE StandardIEEE802.3af, IEEE802.3at
• PoE Power Budget230W
• PoE Port16, 10/100Mbps RJ45 ports

• Port
• Uplink Port2, 1000M Combo Port
• Network Ports18
• High-Priority PortPorts 1-8

• Accessories
• SFP Modules (Optional)HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km ,HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km

• Standard
• Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at

• Performance
• Switching Capacity7.2Gbps
• Max. Forwarding Rate5.36Mpps
• Store-And-ForwardStore-and-forward
