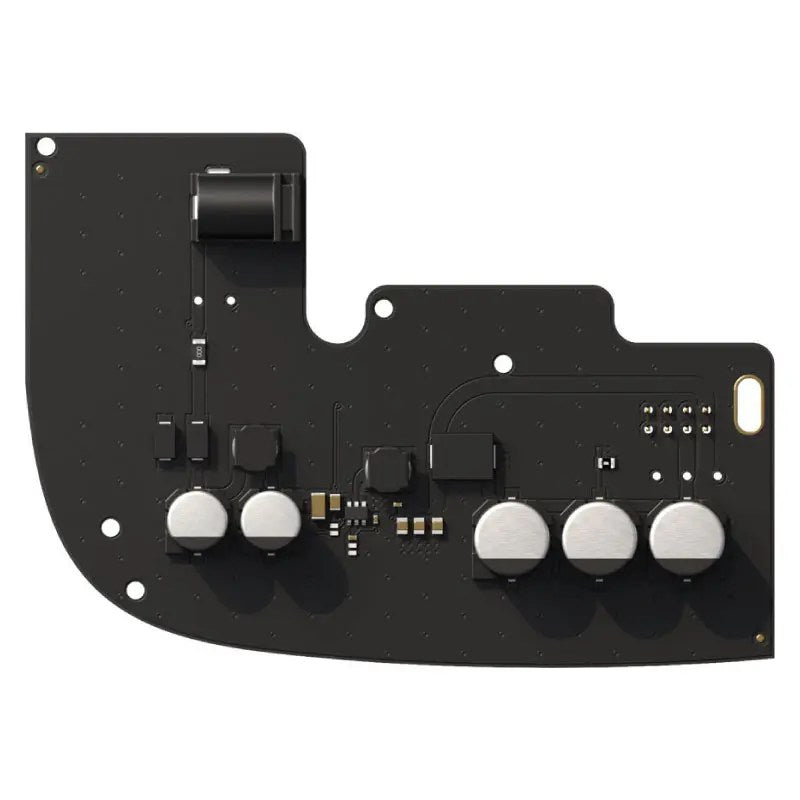

Ajax 6v PSU for Hub 2 Plus
Protecting facilities lacking electricity
The Ajax 6v PSU compatible with Ajax Hub 2 and Hub 2 Plus is a power supply unit used to connect the Hub to low-voltage power sources such as a 6V power supply or portable battery.

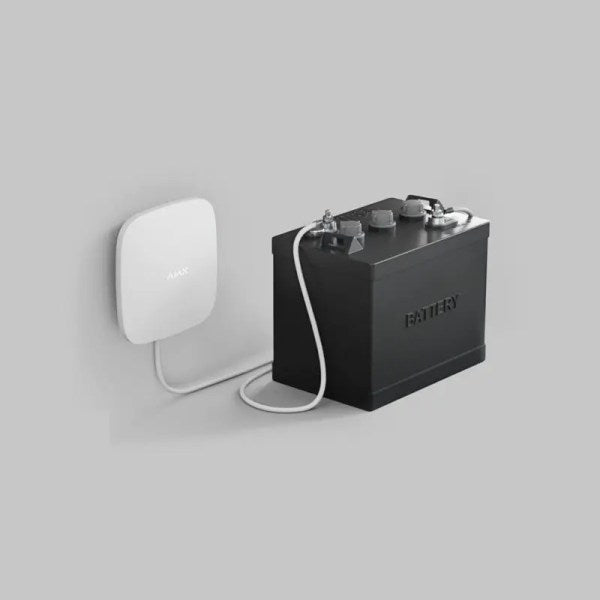

With an alternative 6 V power supply unit, your hub can operate from an external battery for years without being connected to the facility’s power grid and is ready to protect buildings in critical condition, construction sites, or abandoned properties from burglars, vandals, and unauthorized occupation.
The 6v PSU replaces the on-board 220v PSU
Ajax 6v PSU for Hub 2 and Hub 2 Plus
Compatibility
The power supply unit is compatible with Hub 2 and Hub 2 Plus control panels. It has a standard power jack plug to connect the power cable and is supplied with a terminal adapter.
Installation

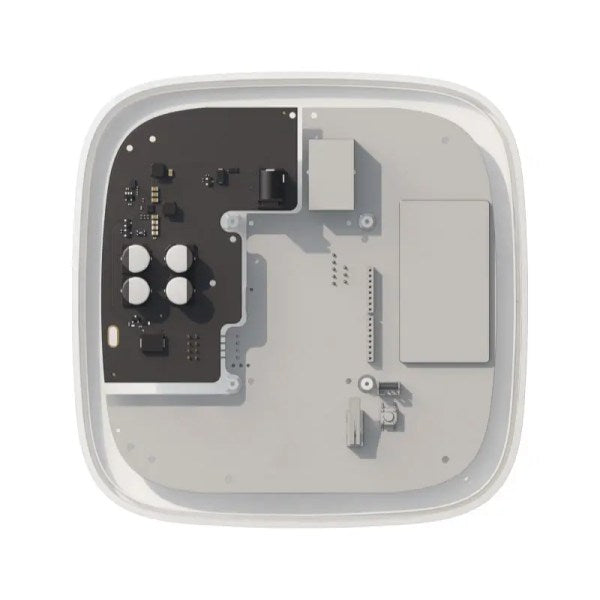

6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
Additional information
| WEIGHT | 26 g |
|---|---|
| DIMENSIONS | 98 × 70 × 17 mm |
Technical Specifications
| Compatibility | Hub 2 and Hub 2 Plus |
| Recommended Batteries | Zinc air and alkaline batteries with 4.2-16v operating power
List of Recommended Batteries |
| Input voltage | 4.2-16 V |
| Output voltage | 4.8 V ± 5% |
| Switch-on voltage | 4.2 V ± 2.5% |
| Switch-off voltage | 3-3.4 V (depending on the load) |
| Maximum Input current | 2.2 A at 4.2 V; 0.5 A at 16 V |
| Maximum Output current | 1,5 A |
| Connection | Plug socket: 6.5 x 2 mm Plug: 5.5 x 2.1 mm |
| Operating temperature range | From -10°С to +40°С |
| Operating humidity | Up to 75% |
| Dimensions | 98 х 70 х 17 mm |
| Weight | 26 g |
| Service life | 10 Years |
| Complete set | 6V PSU for Hub 2/Hub 2 Plus Terminal adapter Quick Start Guide |
