Ajax MotionProtect Outdoor

Ajax MotionProtect Outdoor

Ajax MotionProtect Outdoor Wireless Detector includes Anti-Masking is designed to function in even the most challenging outdoor environments with intelligent protection against fault alarms and includes the maximum possible protection for outdoor detectors.

The anti-masking function, which in on around the clock by default, detects installation of barriers, pasting over, application of paint or transparent coating on one or two lenses. The integrated tamper alarm notifies you if the dust and moisture-proof detector body is opened.

Ajax MotionProtect Outdoor – The first line of defence for home and business

Wireless outdoor motion detector with an advanced anti-masking system and pet-immunity

• Anti-masking function
• Jamming detection and communication channels encryption
• Tampering alarm

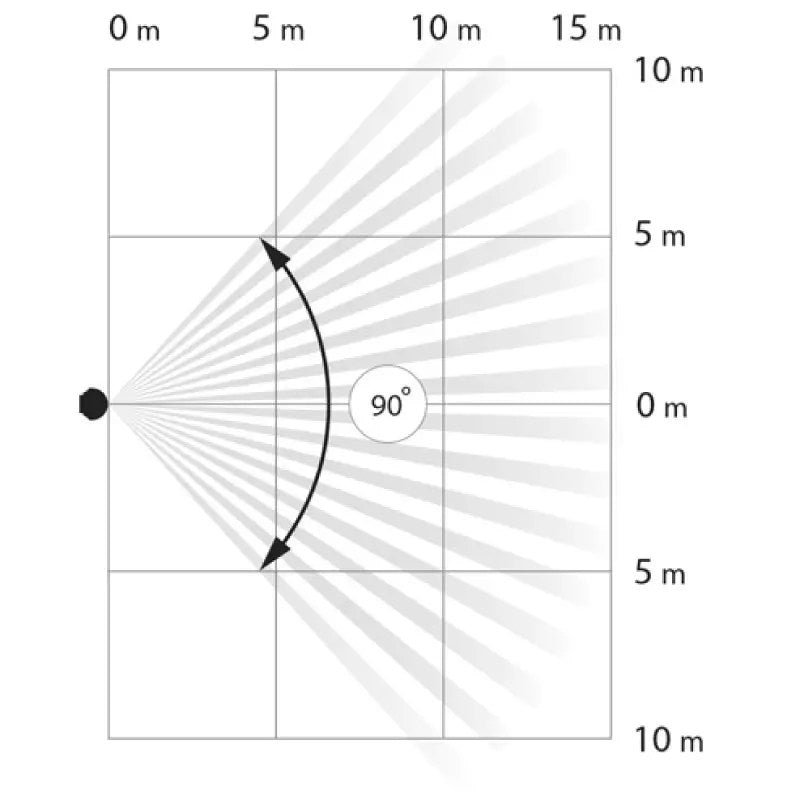

• Detects movement at a distance up to 3–15 meters

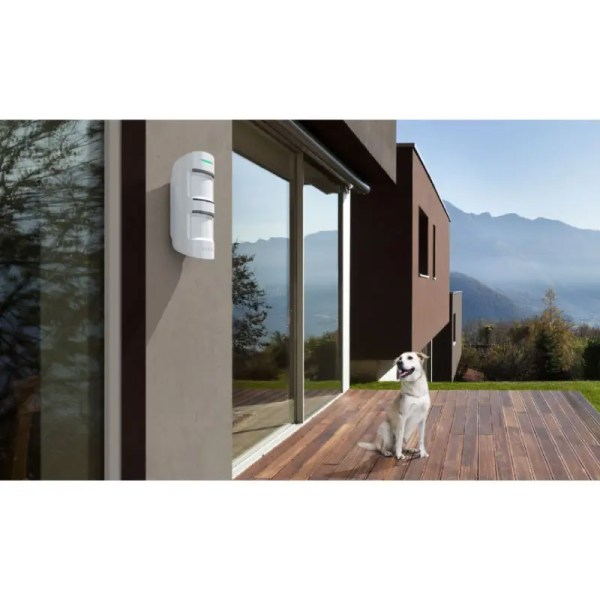

• Ignores pets with a height of up to 80 cm
• Operates up to 5 years without battery replacement
• Authentication to prevent forgery

Two-step algorithm for false alarm prevention

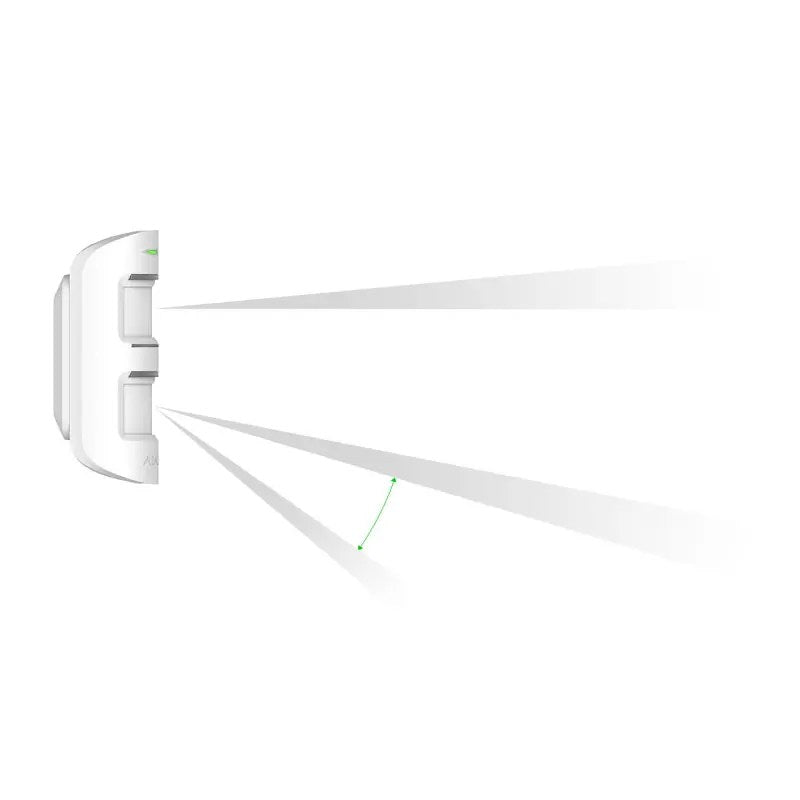

A street is always in action: the wind sways leaves and bushes warmed by the sun, animals and birds move around, various insects land on the body of the detector. This diversity of flora and fauna creates a constant barrage of noise that makes it hard for outdoor motion detectors to spot the real threat, humans. We’ve solved this problem both on software and hardware levels by implementing two PIR sensors and developing a unique two-step algorithm for signal analysis, LISA.

Correlation analysis

Whenever MotionProtect Outdoor detects motion, LISA analyses and compares signal forms from two sensors in real-time. If forms are similar, the alarm is raised.

Spectral analysis

When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.

Grade 3 level of anti-masking

An outdoor detector is an easy target. During the day when the system is disarmed, intruders may damage the sensors or block their view to gain an advantage in trespassing at night. To prevent the cases of sabotage, Ajax MotionProtect Outdoor is equipped with a tamper button and an advanced anti-masking system that can remain active 24/7.

The anti-masking system in MotionProtect Outdoor meets the Grade 3 level of the EN 50131 security standard. It is calibrated automatically when the device is mounted onto SmartBracket to be aware of the surrounding area. Then, if an obstacle appears in the field of view of anti-masking sensors or if they are painted, the detector quickly notices sabotage and raises the alarm. Moreover, a sensitive tamper is immediately activated if someone attempts to dismount the detector from SmartBracket

Ready to operate straight out the box

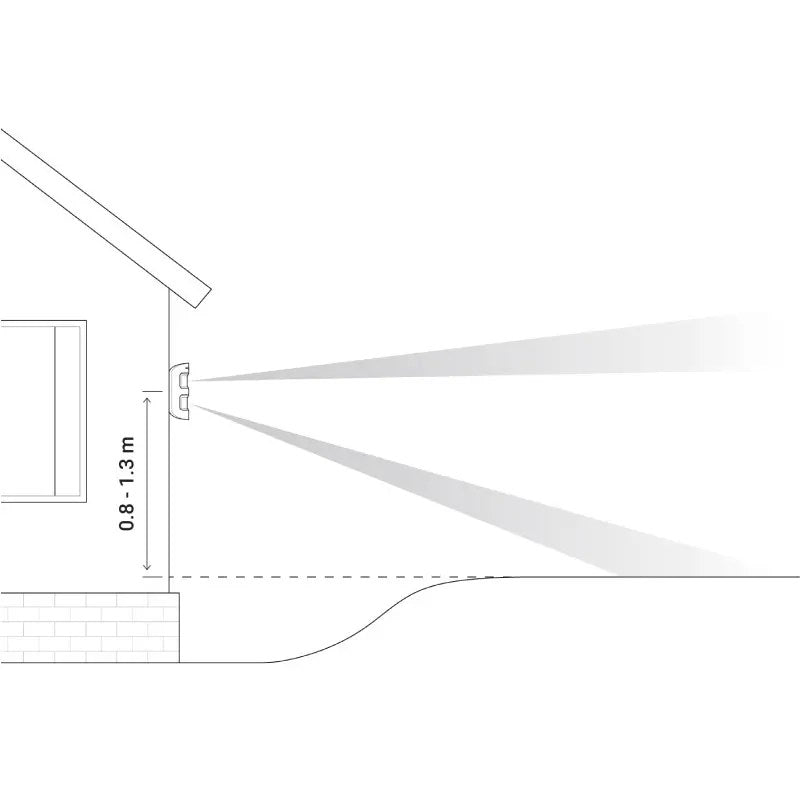

MotionProtect Outdoor comes with pre-installed battery, so you do not need to disassemble it. The detector can be connected to the hub by one click in the mobile application. It can be mounted at a height of 0.8 to 1.3 meters on the SmartBracket in just a few minutes. Although the complete battery life is 5 years, it is possible to connect external power supply.

• Pre-installed batteries
• Mount for quick set up
• Mobile application for configuring and testing

Prevents intrusions invisible with the naked eye

The MotionProtect Outdoor features the maximum possible protection for outdoor detectors. The anti-masking function, which in on around the clock by default, detects installation of barriers, pasting over, application of paint or transparent coating on one or two lenses. The integrated tamper alarms if the dust- and moisture-proof detector body is opened.

• Grade 3 anti-masking
• Detects painting and pasting of the detector
• Protection against unauthorized opening

Ready to operate straight out the box

MotionProtect Outdoor comes with pre-installed battery so you do not need to disassemble it. The detector can be connected to the hub with one click in the mobile application. It can be mounted at a height of 0.8 to 1.3 meters on the SmartBracket in just a few minutes. Although the complete battery life is 5 years, it is possible to connect external power supply.

• Pre-installed batteries
• Mount for quick set up
• Mobile application for configuring and testing
