Ajax MotionProtect Curtain V2
Ajax MotionProtect Curtain V2
Couldn't load pickup availability
Ajax MotionProtect Curtain V2
Ready to operate straight out the box
Ajax MotionProtect Curtain V2 comes with pre-installed battery so you do not need to disassemble it. The detector can be connected to the hub with one click in the mobile application.

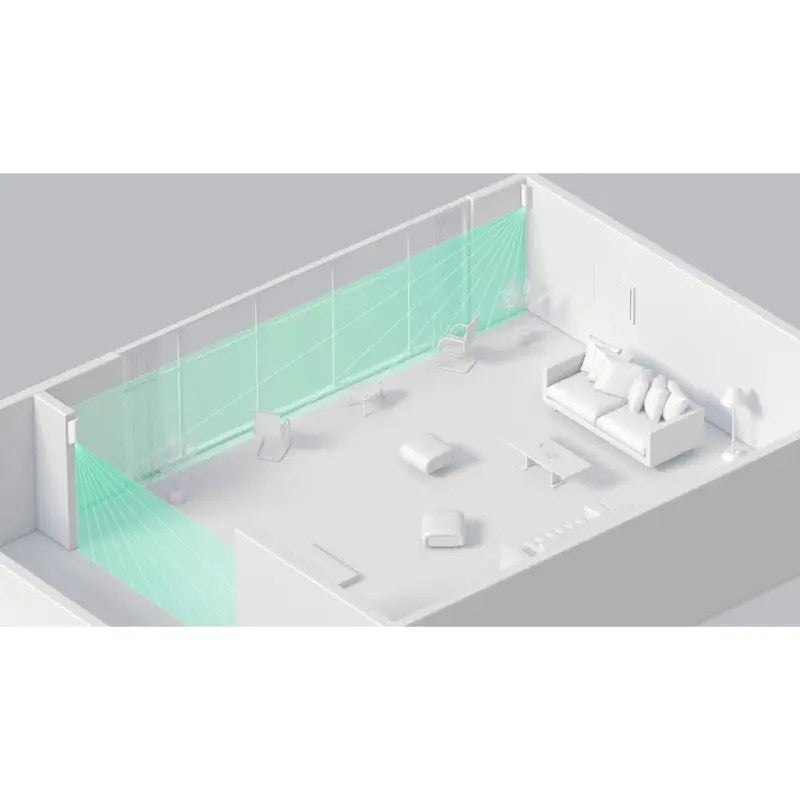

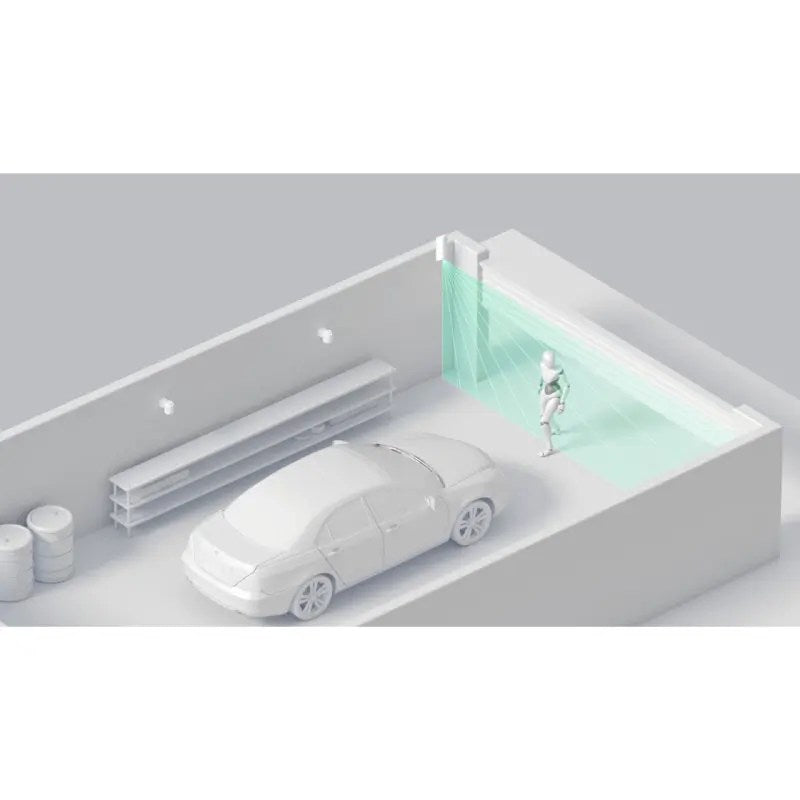

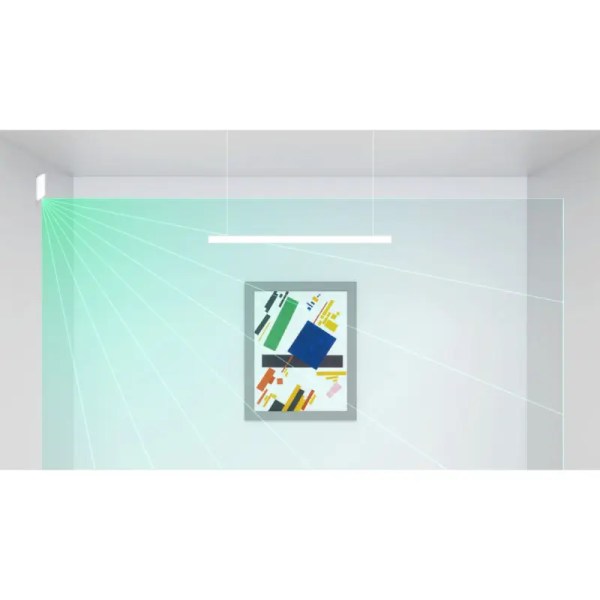

Ajax curtain detector creates an invisible veil protecting windows, doors and valued goods from burglars
- Detects motion from 6 to 15 metres
- Compatible with Hub, Hub 2, Hub Plus and ReX
- Works up to 3 years without battery replacement
Proprietary Optical Technology:
To create MotionProtect Curtain, Ajax developed an optical system of two infrared sensors and a multifaceted mirror. This system allows the detector to receive twice as much information about what is going on in the protected area and instantly react to human presence.
Rapid reaction to threats:
Whether the intruder is running or sneaking, MotionProtect Curtain is always on duty. As soon as they enter its field of view, the detector analyzes signals from both PIR sensors and immediately sends an alert.
Set up in 2 minutes:
MotionProtect Curtain is connected to the security system with a few taps in the app: scan the QR code, add the detector to the room, and continue with installation.
• QR code for simple connection
• SmartBracket mount for quick set up
• Mobile application for configuring and testing
Additional information
| WEIGHT | 118 g |
|---|---|
| DIMENSIONS | 134 × 44 × 34 mm |
| COLOUR |
Black, White |
Technical Specifications
| Classification | Radio-interlinked photoelectric security detector |
| Type of detector | Wireless |
| Motion Detection Distance | Adjustable (from 6 to 15 meters) |
| Installation method | Indoors only |
| Compatibility | Operates with all Ajax hubs, and range extenders |
| Sensing element | Two PIR sensors |
| False alarm reduction | Available, Correlation Signal Processing |
| Alarm signal delivery time | 0.15 seconds |
| Detection angles | Horizontally – 6° Vertically – 90° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 meters |
| Power supply | Battery: CR123A, 3v |
| Battery Life | Up to 3 years
|
| Jeweller radio technology | Communication range with control panel: up to 1,700m in an open space Two-way communication between devices Operating frequencies — 868.0-868.6 MHz Self-adjusting RF output power: up to 20mW Black encryption based on AES algorithm Detector polling period: 12 – 300 sLearn more about Jeweller |
| Temperature sensor | Available |
| Operating temperature range | from -10°С to +40°С |
| Operating humidity | Up to 95% |
| Anti-sabotage | Fraud protection Jamming notification Tamper-resistant |
| Remote configuration and testing | + |
| Protection class | IP54 |
| Dimensions | 134 х 44 х 34 mm |
| Weight | 118 g |
| Warranty | Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries.
|
| Service life | 10 Years |
| Complete Set | MotionProtect Curtain motion detector SmartBracket mounting panel CR123A batteries (Pre-installed) Bracket Installation kit User’s guide |
