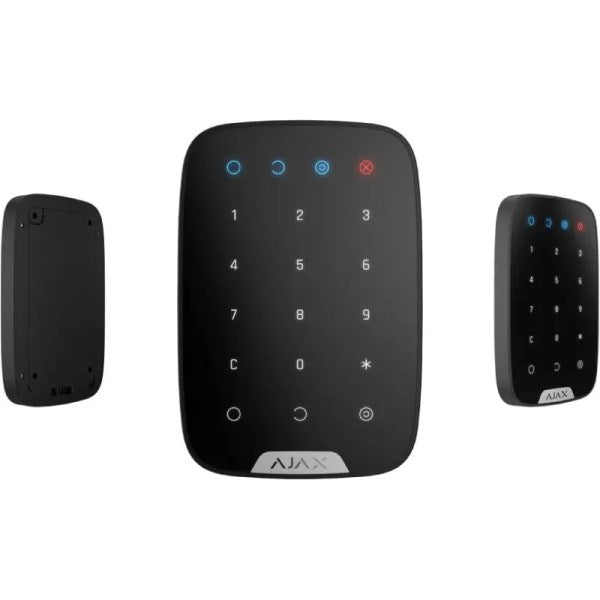

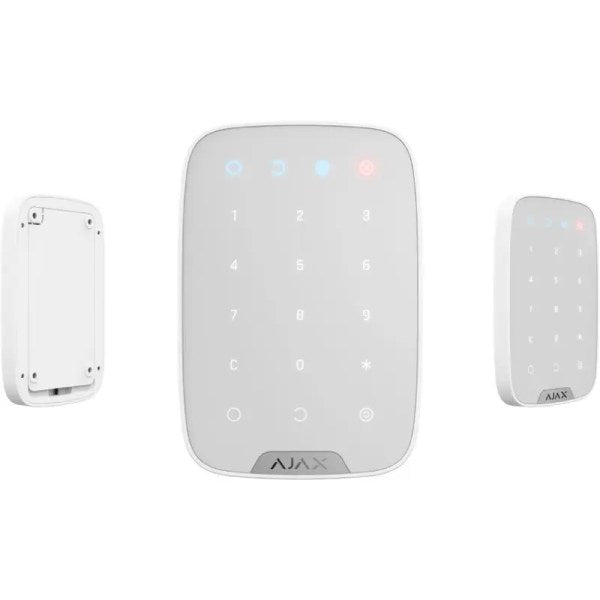

Ajax Keypad
Ajax Keypad
Couldn't load pickup availability
Ajax Keypad
Ajax Keypad helps to manage the Ajax security system however the keypad is completely optional. Arm the system with a user PIN or with the press of a button. Use a duress code to send a silent alarm to your armed response company.
- Allows for complete or partial arming of the system
- Indication of protection status
- Keypad is optional and not a requirement
Ajax Keypad – Wireless Touch
Maximum performance:
• Allows for partial arming of the system
• Indication of protection status
Protection from intruders and failure:
• Protected with rolling code encryption and authentication
• Tampering alarm
• Response from the keyboard can be checked every 12-300 seconds (adjustable)
• Jamming detection, frequency-hopping
Effortless operation:
• Through two-way communication with the hub, the keyboard confirms the delivery of any command
• Has a battery life of up to 2 years when pinging once per minute
• Arm/disarm with a password
• One button arming
Simple professional-level installation:
• No need to disassemble the body when installing using SmartBracket mounts
• The signal strength can be tested remotely
• Connects to Ajax Hub with a single click
Additional information
| WEIGHT | 197 g |
|---|---|
| DIMENSIONS | 150 × 103 × 14 mm |

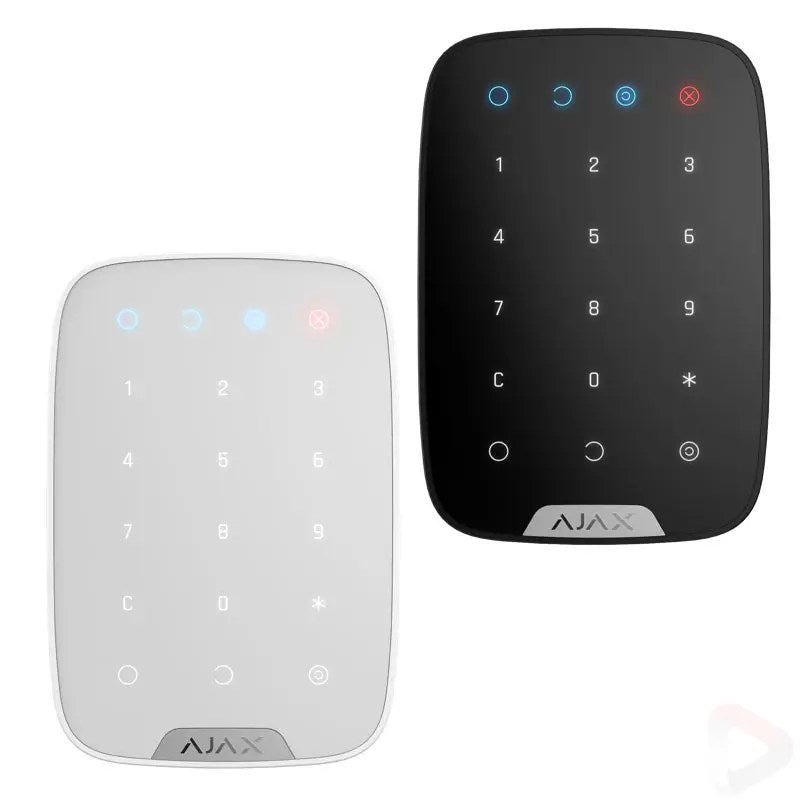

| COLOUR |
Black, White |
Technical Specifications
| Classification | Radio channel touch keypad |
| Type of keypad | Wireless, Touch |
| Installation method | Indoors |
| Compatibility | Operates with all Ajax hubs and range extenders |
| Number of buttons | 15 |
| Duress code | Yes |
| User Passcode | Yes |
| Protection against passcode guessing | Yes |
| Arming / disarming indication | Yes |
| Power supply | Battery: 4x AAA Batteries, 3v |
| Battery Life | Up to 2 years |
| Jeweller radio technology | Communication range with central unit — up to 1,700 m in an open space Two-way communication between devices Operating frequencies — 868.0 – 868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Keypad scanning period — 12 – 300 sLearn more about Jeweller |
| Temperature sensor | Available |
| Operating temperature range | from -10°С to +40°С |
| Operating humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Remote setting and testing | + |
| Dimensions | 150 x 103 x 14mm |
| Weight | 197g |
| Certification | Grade 2, CE |
| Warranty | Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries. |
| Service life | 10 Years |
| Complete Set | Keypad touch keyboard SmartBracket mounting panel 4x AAA batteries (Pre-installed) Installation set User’s guide |
