Communication with the outer world is critical for alarm control panels as its reliability guarantees prompt delivery of alarm signals. The new Ajax control panel makes external communication stability absolute.
Hub 2 Plus is equipped with a communicator that features 4 independent channels including LTE. This configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up. Switching between channels happens seamlessly in seconds.
Automated security
- Flood prevention system
- Automatic doors and roller shutters
- Spotlighting the trespassers
Protection of large premises with complex internal organization
- 200 Devices in the system
- 200 Users
- 25x Security Groups
- Live stream 100x IP Cameras / DVR’s
- 35km² Maximum radio range coverage using 5x ReX extenders (open areas)
Seamless security system upgrade
To simplify the process of upgrading installed hubs, we’ve provided the possibility of automatic data transfer. The import feature allows engineers to migrate settings, connected devices, groups, scenarios, and users from an old hub to Hub 2 Plus. In less than 15 minutes.

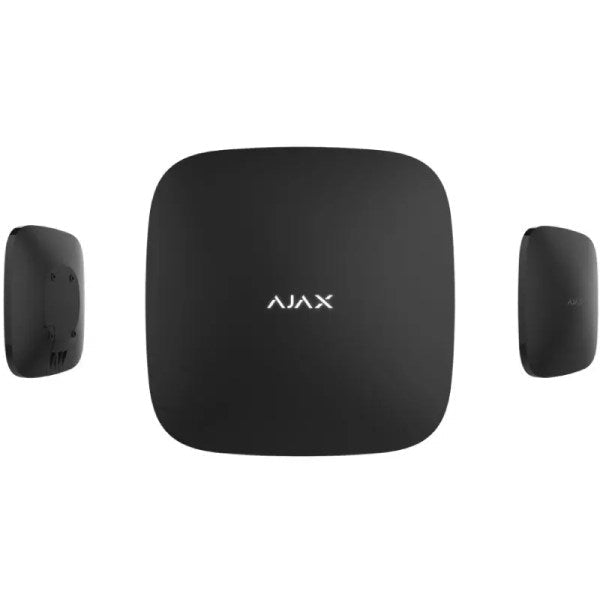

Ajax Hub 2 Plus control panel is ready to work out the box and includes MotionCam support. It includes everything you need to get started including up to 15 hours built-in battery backup.
Add up to 200 Ajax wireless devices by scanning their QR codes and create up to 25 groups (partitions) that can be independently armed with a single tap on the smartphone app.
Add up to 200 users and adjust their user permissions to restrict or hide access to certain features, functions and groups.
Receive instant alarm and panic alerts as well as MotionCam photos of the cause of the alarm on your phone and control your system from anywhere. Open gates, turn on lights or even control your appliances by schedule, by alarm, by arming / disarming or just a tap on your phone.
SIM Card for Backup to Internet Failure
Ajax Hubs rely on the internet for remote functionality and includes SIM card slots for backup to internet failure. Justworx are multi-network SIM cards that automatically connect to the strongest Vodacom or MTN network to ensure the Hub is always connected to Ajax cloud. Only one Justworx SIM card is required!
Justworx Data4Life will last for 30 years.
No Monthly Fees | No Subscriptions | No Recharge Fees | Data Never Expires
Additional information
| WEIGHT | 351 g |
|---|---|
| DIMENSIONS | 163 × 163 × 36 mm |
| COLOUR |
Black, White |
Technical Specifications
| Classification | Security system control panel with four in-built channels for communication and support of detectors with photo cameras |
| Installation | Indoors |
| Connected devices | 200 |
| Video surveillance support | 100 cameras and DVRs
|
| Users | 200 |
| Rooms | 50 |
| Groups / Partitions | 25 |
| Connected ReX | 5 |
| Connected sirens | Up to 10 |
| Scenarios | 64
|
| MotionCam detectors support | + |
| Apps | iOS 11.0 and later Android 4.4 and later |
| Communication Channels | 2 SIM cards 2G (GSM900/DCS1800 (B3/B8)) 3G (WCDMA 850/900/2100 (B1/B5/B8)) LTE (FDD B1/B3/B5/B7/B8/B20) Wi-Fi (802.11 b/g/n) Ethernet |
| Alarm signals | Delivery time: 0.15sec Notification Types: SMS, Call, Push Notification |
| Switching between 2G, 3G, LTE | Instant |
| Switching between the SIM-Cards | 4 Minutes |
| CMS connectivity | CMS connectivity: Contact ID, SIA (DC-09)
CMS software supporting visual alarms verification |
| Operating system | OS Malevich
More about OS updates |
| Power supply | 110-240 V with pre-installed battery 6 V with alternative 6V PSU power supplyEnergy consumption from the 110-240 V grid — 10 W |
| Built-in back-up battery | Li-Ion 3 А·h Ensures up to 15 hours of operation when using SIM card only |
| Jeweller radio technology | Communication range with detectors: up to 2,00m in an open space Two-way communication between devices Operating frequencies: 868.0-868.6MHz Self-adjusting RF output power: up to 25mW Black encryption based on AES algorithm Detector polling period: 12-300 s Frequency hoppingLearn more about Jeweller |
| Wings radio technology | Transmission of visual confirmations Delivery verification of packages |
| Operating temperature range | From -10° to +40° |
| Anti-sabotage | Forgery prevention Notifications about jamming Tamper to detect back lid opening and unmounting from SmartBracket |
| Remote set up and testing | + |
| Size | 163 x 163 x36mm |
| Weight | 351g |
| Warranty | Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries
|
| Service life | 10 Years |
| Complete Set | Ajax Hub 2 Plus intelligent control panel SmartBracket mounting panel Power cable Ethernet cable Installation kit User guide |
