Ajax Hub 2 (4G)

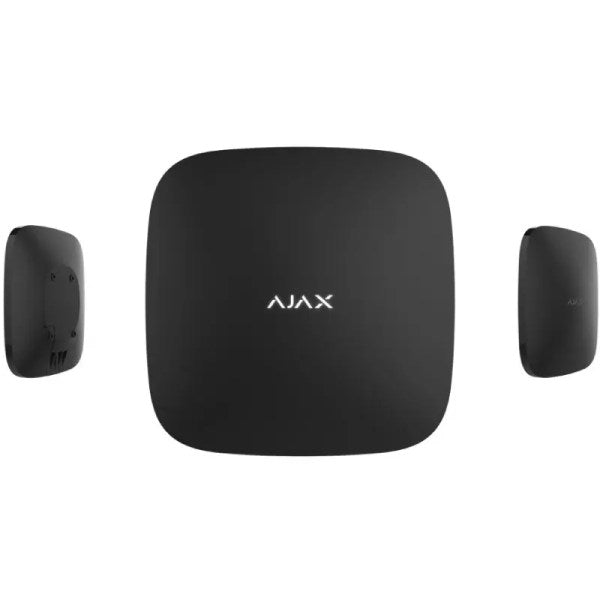

Ajax Hub 2 4G – 100 Zone Control Panel including MotionCam support
Ajax Hub 2 4G supports all the Ajax devices including MotionCam. Hub 2 manages all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flood. If burglars break into your house, Hub 2 transmits photos from the MotionCam detectors and notifies the alarm response company about the danger.
The Ajax Hub 2 includes the following:
|
Specifications:
|
Built-in: Battery backup for up to 16 hours
|
|
Supports:
|
Features:
|
Ajax Hub 2 4Gcontrol panel is ready to work out the box and includes MotionCam support. It includes everything you need to get started including up to 16 hours built-in battery backup.
Add up to 100 Ajax wireless devices by scanning their QR codes and create up to 9 groups (partitions) that can be independently armed with a single tap on the smartphone app.
Add up to 50 users and adjust their user permissions to restrict or hide access to certain features, functions and groups.
Receive instant alarm and panic alerts as well as MotionCam photos of the cause of the alarm on your phone and control your system from anywhere. Open gates, turn on lights or even control your appliances by schedule, by alarm, by arming / disarming or just a tap on your phone.
SIM Card for Backup to Internet Failure
Ajax Hubs rely on the internet for remote functionality and includes SIM card slots for backup to internet failure. Justworx are multi-network SIM cards that automatically connect to the strongest Vodacom or MTN network to ensure the Hub is always connected to Ajax cloud. Only one Justworx SIM card is required!
Additional information
| WEIGHT | 362 g |
|---|---|
| DIMENSIONS | 163 × 163 × 36 mm |
| COLOUR |
Black, White |
Technical Specifications
| Classification | Security system control panel |
| Colour | White | Black |
| Installation type | Indoors |
| Maximum number of connected devices | 100 |
| Maximum number of connected radio signal range extenders | Up to 5
|
| Video surveillance support | Up to 25 cameras or DVRs
|
| Users | Up to 50 |
| Rooms | Up to 50 |
| Scenarios | Up to 32
(Scenarios by arming/disarming are not included in the overall limit of the hub’s scenarios)
|
| Security Groups / Partitions | Up to 9
Learn more |
| Communication Channels² |
Hub 2 (2G): Ethernet two SIM cards 2G (GSM900/DCS1800 (B3/B8))Hub 2 (4G): Ethernet two SIM cards 2G (GSM900/DCS1800 (B3/B8)) 3G (WCDMA 850/900/2100 (B1/B5/B8)) LTE (FDD B1/B3/B5/B7/B8/B20 |
| Alarm delivery time | 0.15 sec |
| Types of notifications | Push notifications Phone calls SMS(types of notifications depend on user settings) |
| Sending photo in case of an alarm | Photo delivery time under default settings: up to 9 secondsPhoto resolution: up to 640×480 pixelsPhotos in a series: 1–5Learn more |
| Switching between 2G, 3G, LTE | Instantly
[available only on Hub 2 (4G)] |
| Switching between SIM cards | 4 minutes |
| Support of central monitoring station communication protocols | Sur-Gard (Contact ID), SIA (DC-09), proprietary protocols.
CMS software with support for photo verification of alarms |
| Support of monitoring software | PRO Desktop
Learn more |
| Operating system | OS Malevich
Learn more about firmware upgrades |
| Power supply | 110−240 V, 50/60 Hz Consumption from the 110-240 V AC grid is up to 10 W6 V⎓ with an alternative power supply unit 6V PSU 12 V⎓ with an alternative power supply unit 12V PSU |
| Built-in back-up battery | Li-Ion 2 Аh Up to 16 h of battery life with Ethernet disabled |
| Jeweller radio technology | Communication range — up to 2000 meters in a line of sight Two-way communication between devices Operating frequencies: 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz (Depends on the sales region) Auto-regulated radio signal power: ≤ 25 mW Blocking encryption based on the AES algorithm Detector ping interval: 12–300 seconds Frequency hoppingLearn more |
| Wings radio protocol | Transmission of a series of photos Transmission of photos by request Checking photo delivery |
| Protection class | IP50 |
| Operating temperature range | From -10° to +40° |
| Operating humidity | Up to 75% |
| Anti-sabotage | Forgery prevention Notifications about jamming Tamper to detect back lid opening and unmounting from SmartBracket |
| Remote configuration | + |
| Dimensions | 163 x 163 x36mm |
| Weight | 362g |
| Warranty | 24 months from the date of sale. The warranty does not cover batteries
|
| Service life | 10 Years |
| Complete Set | Hub 2 (2G) or Hub 2 (4G) SmartBracket mounting panel Power cable Ethernet cable Installation kit User Guide |
