Ajax Double Button

Ajax Double Button

R 659.86 ZAR
R 770.00 ZAR R 659.86 ZAR
Sale Sold out
Shipping calculated at checkout.
Color

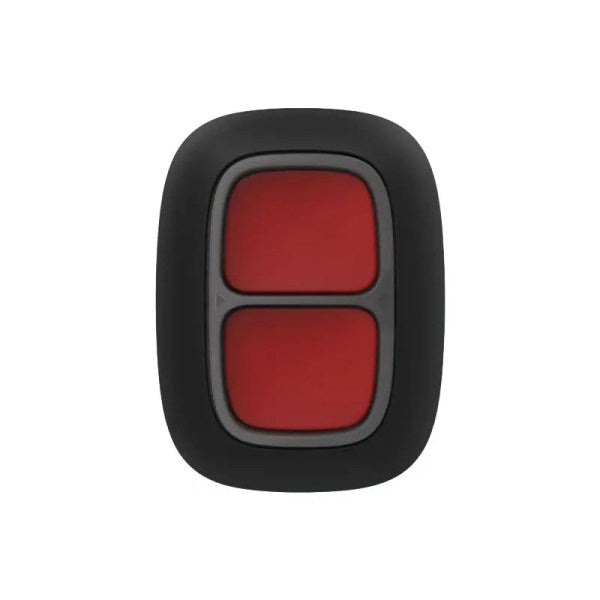

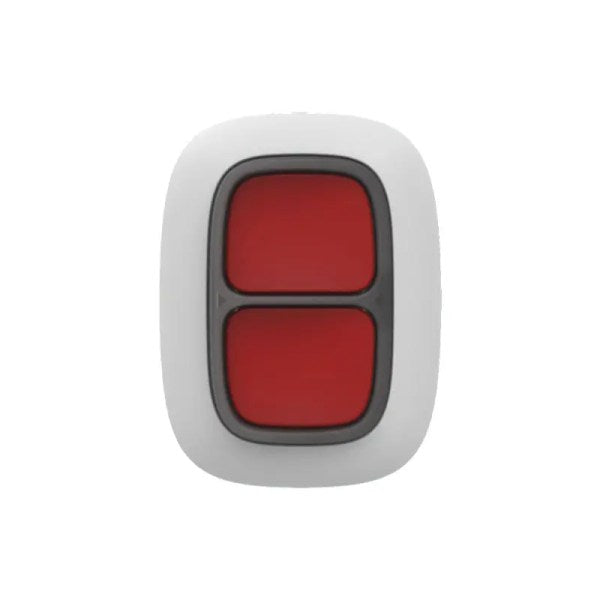

Ajax Double Button

The Ajax DoubleButton is a wireless double button multi-scenario remote. Easily program the remote to notify your armed response company of an intrusion / panic and with the smart scenario feature, the device can activate all or specific sirens, run automation scenarios, trigger a smoke machine, close electric locks or lower roller shutters.

The device transmits a signal to the hub via Jeweller, a two-way radio protocol communicating at a range of up to 1.3km. Jeweller encrypts the transmitted data and prevents device forgery. In the case of interference, the Ajax system switches to a free radio frequency and when the air is jammed it notifies users as well as the security company.

Ajax Double Button – Wireless Hold-Up Device

No accidental presses

To activate the alarm, you must simultaneously press both buttons. They are stiff and parted by a plastic barrier. These measures eliminate false alarms when carrying DoubleButton in a pocket or bag.

Guaranteed alarm delivery

The hold-up device transmits a signal to the hub via Jeweller—a two-way radio protocol communicating at a range of up to 1300 meters in open areas. A flashing LED verifies the successful delivery of the DoubleButton alarm. Jeweller encrypts the transmitted data and prevents device forgery. In the case of interference, the Ajax system switches to a free radio frequency, and when the air is jammed, it notifies users and a security company about the situation.

PRO-technology solution for any object

DoubleButton meets the requirements of professional European security standards and can be used in both private and commercial properties. Wireless connectivity with the hub and long communication range gives freedom in placing and allows you to carry DoubleButton around.

More than just alarms

Raising an alarm is the priority DoubleButton function. But not the only one. By transmitting an alarm signal, the hold-up device can activate all or specific sirens at the object. And also, run automation scenarios: trigger a smoke machine, close electric locks, lower roller shutters.

Additional information

WEIGHT 17 g
DIMENSIONS 47 × 35 × 16 mm

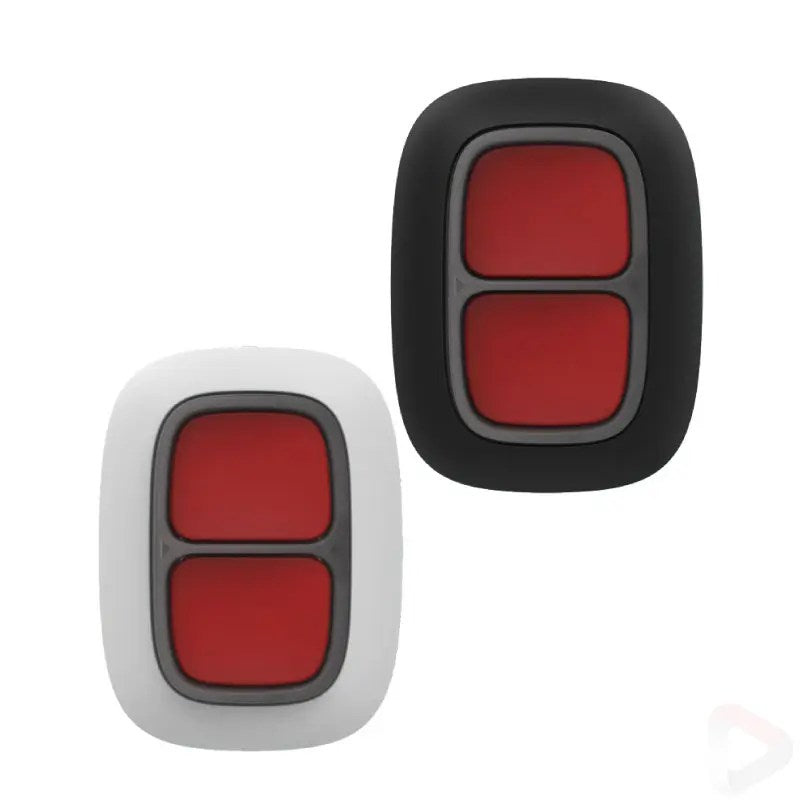

COLOUR

Black, White


Technical Specifications

Classification Wireless hold-up device
Compatibility Operates with all Ajax hubs and range extenders (with OS Malevich 2.10)
False alarm prevention Yes
Number of buttons 2
Alarm transmission Not longer than 0,15 sec
Always active (does not require waking up to use)
Jeweller radio technology Communication range with a hub — up to 1300 m in an open area
Two-way communication
Operating frequencies — 868.0 – 868.6 or 868.7 – 869.2 MHz (depends on sales region)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Frequency hoppingLearn more about Jeweller
Power supply CR2032 battery, 3 V
Up to 5 years
Operating temperature range from -10°С to +40°С
Operating humidity Up to 75%
Protection class IP55
Dimensions 47 x 35 x 13mm
Weight 17g
Warranty Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.


Service life 10 Years
Complete Set DoubleButton
Pre-installed CR2032 battery
Quick Start Guide
