Ajax DoorProtect
Ajax DoorProtect – Wireless Door Contact – includes wired input for 3rd party detectors

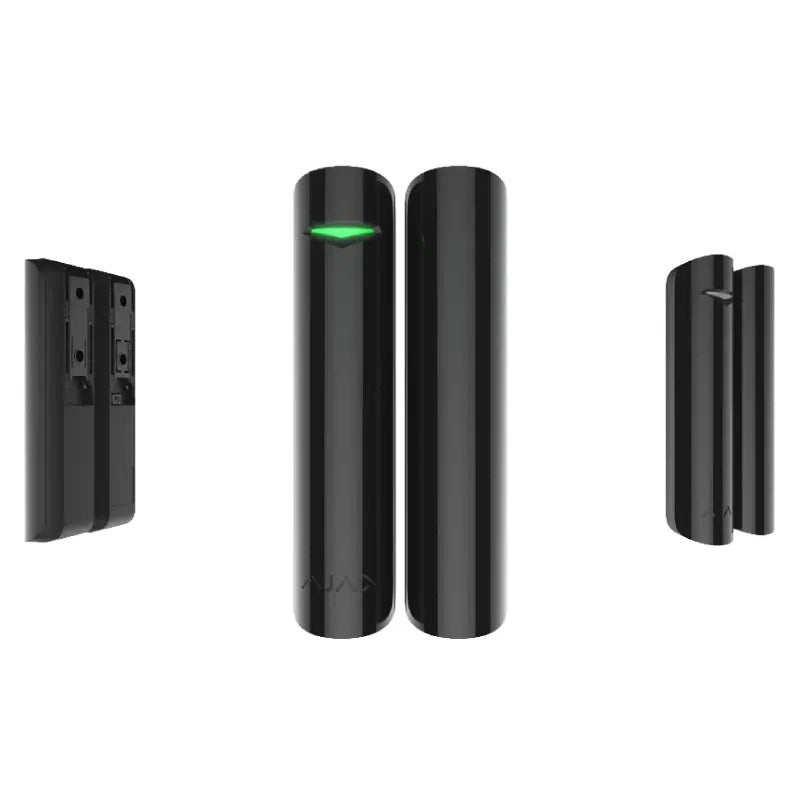

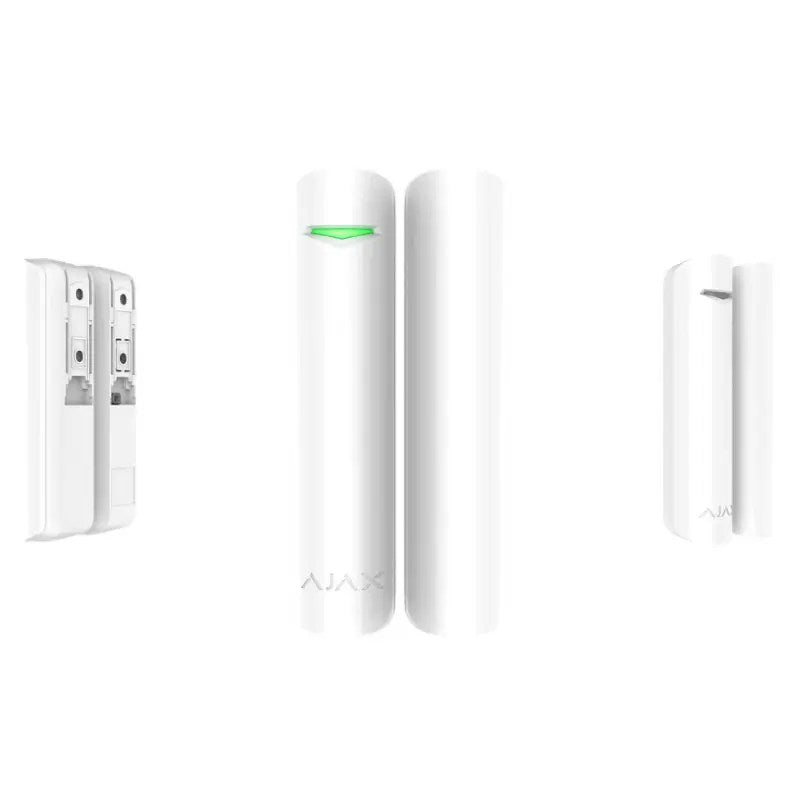

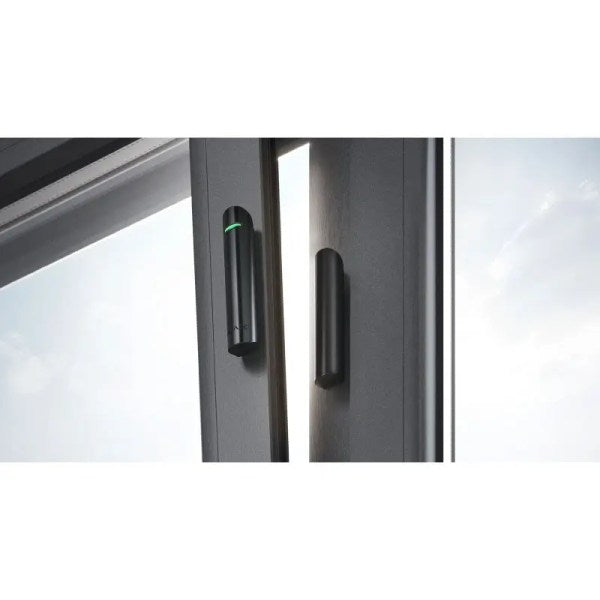

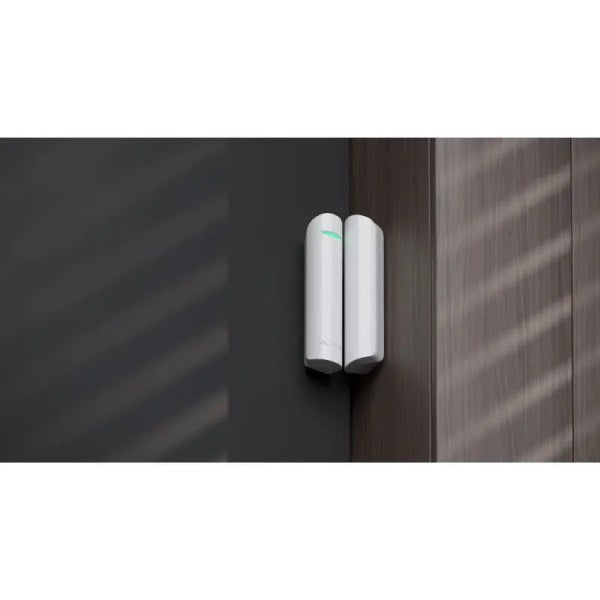

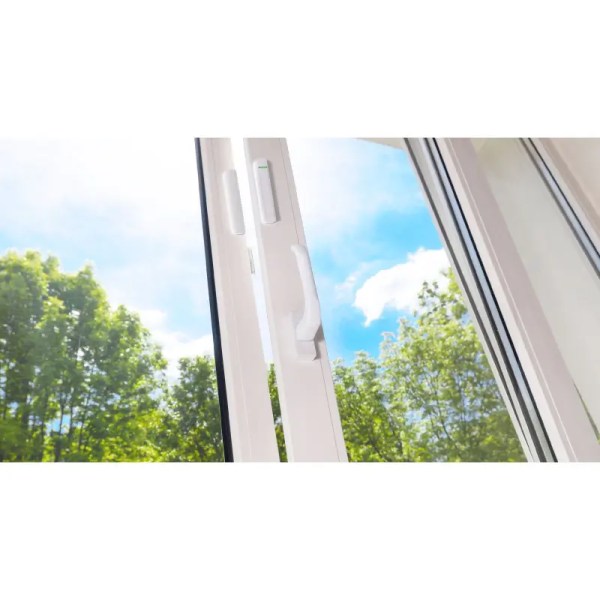

The Ajax DoorProtect is a wireless opening detector that notifies you of any unauthorized window or door openings. It can be mounted on all types of doors including a metal base.
The device consists of two modules, a detector, and a magnet. The set includes a big and small magnet for installation on narrow door and window frames.
The sensor comes with a battery and is therefore ready for installation. Scan the QR code on the back of the device with your smartphone and it connects to the hub.
- Ajax wireless door or window opening detector
- Separate wired input for 3rd party detectors
- Uses authentication to protect against fraud
- Tamper-resistant body
- Response from detectors can be checked every 12-300 seconds (adjustable)
- Jamming detection, frequency-hopping
- Uses an encrypted connection
- Uses British-made reed switches that can be toggled more than 1,000,000 times without failure
- Two-way communication with Ajax Hub allows for periodic testing and customization
- Saves energy by regulating power consumption based on the distance from Ajax Hub
- Has a battery life of up to 7 years when pinging once per minute

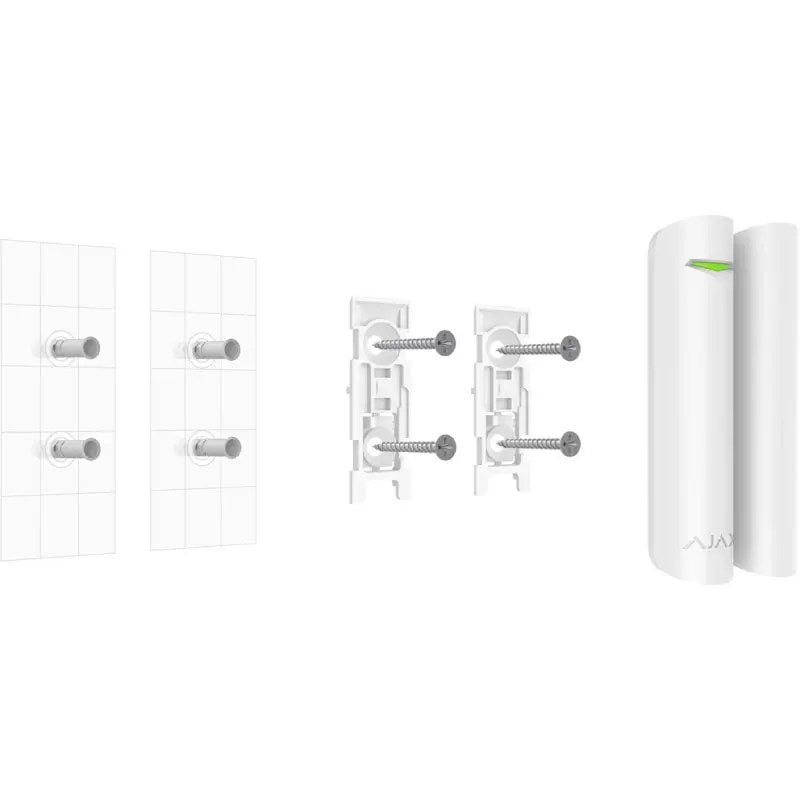

- No need to disassemble the body when installing using SmartBracket mounts
- Uses powerful magnets that can be installed up to 2 cm from the main unit
- The quality of the connection and detection area can be tested remotely
- Connects to Ajax Hub with a single click
- Tamper alarm
Additional information
| WEIGHT | 29 g |
|---|---|
| DIMENSIONS | 90 × 20 × 20 mm |

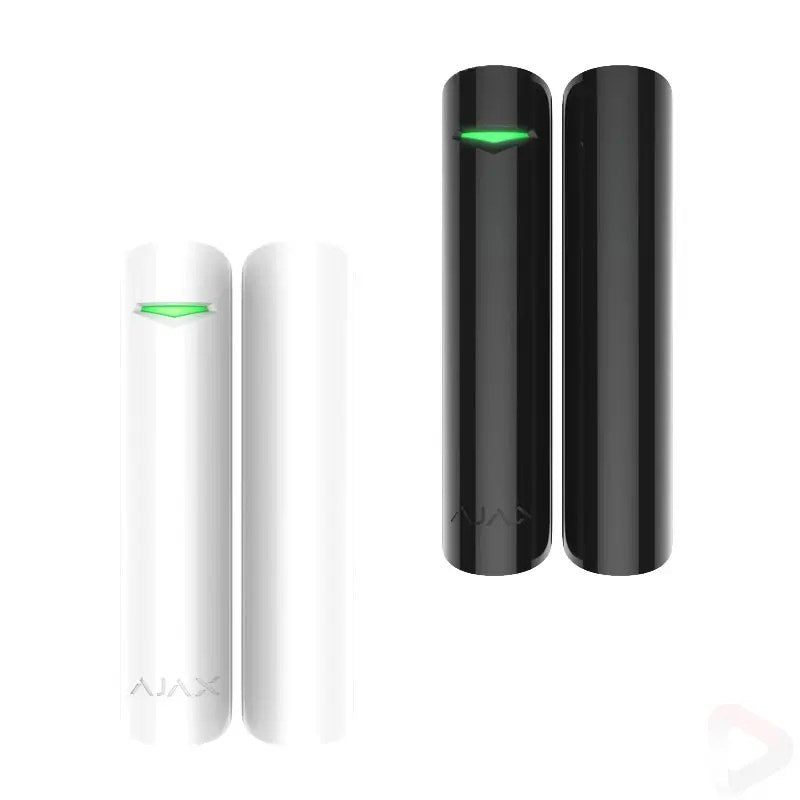

| COLOUR |
Black, White |
Technical Specifications
| Classification | Point magnetic contact radio channel security detector |
| Device type | Wireless |
| Installation method | Indoors |
| Compatibility | Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge |
| Sensing element | Reed switch |
| Alarm signal delivery time | 0.15 sec |
| Activation threshold | Small magnet – 1cm Big magnet – 2cm |
| Power supply | Battery: CR123A battery, 3v |
| Battery life | Up to 7 years
|
| Jeweller radio technology | Communication range with central unit — up to 1,200 m in an open space Two-way communication between devices Operating frequencies — 868.0-868.6 MHz Self-adjusting RF output power — up to 20mW Block encryption based on AES algorithm Detector polling period — 12−300 sLearn more about Jeweller |
| Temperature sensor | Available |
| Operating temperature range | from -10°С to +40°С |
| Operating humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Remote setting and testing | + |
| Dimensions | Diameter: 20mm
Height: 90mm |
| Weight | 29g |
| Warranty | Replacement and repair for a period of 24 months of the date of sale. Batteries are not covered under warranty |
| Service life | 10 Years |
| Complete set | DoorProtect opening detector SmartBracket mounting panel Two magnets CR123A battery (pre-installed) External contact Installation set User’s guide |
