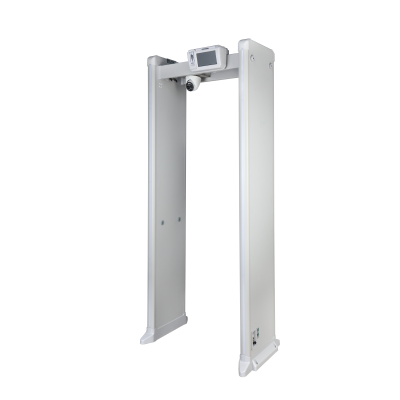

Temperature Monitoring Walk-through Metal Detector (Thermal Sensor)

Temperature Monitoring Walk-through Metal Detector (Thermal Sensor)

R 78,695.25 ZAR
R 93,695.25 ZAR R 78,695.25 ZAR
Sale Sold out
Shipping calculated at checkout.

Dahua Temperature Monitoring walk-through Metal Detector

Walk-through Metal Detector

> Two sets of high-brightness red-green LEDs, super bright double-row area indicator lights and independent interactive 18-zone function with 12 detectors

> 7-inch full-color touch-screen LCD display
> Easy to install and use with modular design
> Safe use with low voltage design
> Stable running with anti-loose aviation power plug
> High-strength Fire retardant High-pressure Laminate(HPL) material
> Monitor and show background interference in real time
> Count the numbers of passes and alarms respectively
> Count the numbers of people with normal body temperature and
> Monitor and show body temperate in real time
> Trigger sound and light warning for body temperate alarm
> Ultra-high sensitivity
> 72 application scenarios and extra 16 customize scenarios
> Zone sensitivity adjustable from 0 to 255
> Security degree adjustable from 0 to 99
> 100 working frequencies selectable
> Alarm sound volume adjustable from 0 to 10; support mute mode
> 17 alarm sound types
> Multiple start-stop modes for IR
> Power-on self-test

> Remote monitoring and configuration through network

Camera

> Uncooled VOx thermal sensor technology

> Athermalized lens (thermal camera), focus-free
> 1/2.7'' 4Megapixel progressive scan CMOS
> Support ROI, motion detection, color palettes
> Smoking and call behaviour detection
> Support fire detection & alarm
> Built-in 1/1 alarm in/out
> Micro SD memory, IP67, PoE
> Smart linkage with strobe light & audio
> Dual image fusion (visible and thermal images)

Specifications:

General

Overall Exterior Size

2210 mm × 928 mm × 572 mm (87.0" × 36.5" × 22.5")

Passageway Interior Size

1950 mm × 714 mm × 572 mm (76.8" × 28.1" × 22.5")

Packing Size

2409 mm × 868 mm × 304 mm (94.8" × 34.2" × 12.0")

Net Weight

45 kg (99.2 lb)

Gross Weight

52 (with camera)

Operating Voltage

12V, 100-240V AC Power adapter included in the package

Max Power Consumption

23W

Standby Power Consumption

10W

Operating Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

0%–95%

Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Storage Humidity

0–95% RH

Working Frequency

1–100 frequencies

Ports

Bottom Panel Port

Aviation power connector, 1 on each side

Bottom Panel Network Port

RJ-45, 1 on each side

Certification

Certifications

GB15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Camera Technical Specification

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 × 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

< 50 mK (@f/1.0, 25Hz, 300K)

Focal Length

3.5 mm

Field of View

H: 50.6°, V: 37.8°

Close Focus Distance

0.5 m (1.64 ft)

Effective Distance
Human (1.8 m × 0.5 m)

D: 146 m (479 ft)
R: 38 m (125 ft)
I: 19 m (622 ft)

Effective Distance
Vehicle (4.0 m × 1.4 m)

D: 389 m (1276 ft)
R: 97 m (318 ft)
I: 49 m (161 ft)

Aperture

F1.0

Digital Detail
Enhancement (DDE)

Yes

Digital Zoom

16 ×

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Image Flip

90°; 180°; 270°

Color Palettes

18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2336 × 1752

Pixel

4MP

Electronic Shutter Speed

1/30000 s–1 s

Min. Illumination

Color: 0.05 Lux
Black & white: 0.005 Lux
0 Lux (IR on)

IR Illumination Distance

≥ 30 m (98.43 ft)

IR Illuminator On/Off
Control

Auto; manual

Focal Length

4 mm

Aperture

F1.6

Field of View

H: 71.2°
V: 52°
D: 92.6°

Focus Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

Day/Night

Auto (ICR); Color and B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

≥ 55 dB

Region of Interest (RoI)

Yes

Image Flip

90°; 180°; 270°

Exposure Compensation

Yes

Intelligence

General Intelligence

Tripwire; intrusion

Advanced Intelligence

Fire detection & alarm

Cold & hot spot trace

Human & vehicle classification

Smoking detection

Call detection

Video and Audio

Video Compression

H.265/H.264M/H.264H/H.264B/MJEPG

Resolution

Thermal:
Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/
VGA (640 × 480)/256 × 192, 1280 × 960 by default
Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by
default
Visual:
Main Stream: 2336 × 1752/1080p (1920 × 1080)/720p
(1280 × 720)/D1 (704 × 576), 2336 × 1752 by default
Sub Stream: 720p (1280 × 720)/D1 (704 × 576)/CIF (352
× 288), 352 × 288 by default

Frame Rate

Thermal
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1fps–30 fps adjustable, 15 fps by
default
Visual
50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by
default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default
60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by
default; (sub stream) 1 fps–30 fps adjustable, 15 fps by
default

Audio Compression

G.711a; G.711mu; PCM

Network

Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;
UPnP; NTP

Edge Storage

Micro SD card (256 G)

Interoperability

ONVIF; CGI

Browser

IE: IE8 and the later, and explorer with IE core
Google: 42 and the earlier
Firefox: 42 and the earlier

User/Host

10

Security

Authorized username and password; attached MAC
address; encrypted HTTPS; IEEE 802.1x; controlled
network access

Certification

Certifications

CE: EN55032:2015; EN61000-3-2:2014
FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014

Port

Network

1 10M/100M Ethernet port (RJ-45)

RS-485

1 pair

Power

Power Supply

12V DC±20%/PoE

Power Consumption

Basic: < 6.5W (LED off)
Max: < 13W (LED on, heater on)

Environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Storage Temperature

–30°C to +70°C (–22°F to +158°F)

Operating Humidity

≤ 95%

Protection

IP67, anti-surge 6kV, anti-elctrostatic 6kV (touched by
objects), anti-elctrostatic 8KV (air)

Structure

Product Dimensions

122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")

Packaging Dimensions

155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")

Net Weight

≤ 0.85 kg (1.87 lb)

Gross Weight

≤ 1 kg (2.20 lb)
