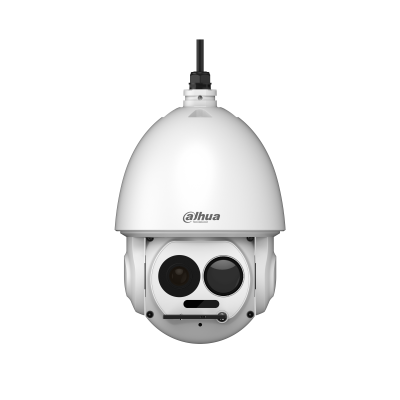

DAHUA Dual View Thermal PTZ IP Camera

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

400(H)x300(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

<40mK

Spectral Range

8~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

18(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed/F1.0

Focus Control

Athermalized, Focus-free

Focal Length

25mm

35mm

50mm

Angle of View

H:15.5°, V:11.6°

H:11.1°, V:8.3°

H:7.8°, V:5.8°

Effective Distance①

Man(1.8m*0.5m)

D②:735m

R③:189m

I ④ :95m

D:1030m

R:265m

I : 132m

D:1471m

R: 378m

I : 189m

Effective Distance

Vehicle(4m*1.4m)

D:1634m

R:420m

I :210m

D:2288m

R: 588m

I : 294m

D:3268m

R: 840m

I : 420m

Visible Camera

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H)x1080(V)

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

0.005Lux@F1.6(Color), 0.0005Lux@F1.6(B/W)

S/N Ratio

More than 55dB

IR Distance

100m (328ft)

IR On/Off Control

Auto / Manual

IR LEDs

4

Visible Lens

Focal Length

3.95mm~177.7mm

Max Aperture

F1.6 ~ F4.95

Angle of View

H: 70.3° ~ 1.8°

Optical Zoom

45X

Focus Control

Auto / Manual

Close Focus Distance

100mm~ 1000mm (0.33ft~3.28ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless;Tilt: -10° ~ 90°

Manual Control Speed

Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s

Preset Speed

Pan: 0.1° ~240° /s ;Tilt: 0.1° ~200° /s

Preset

300

PTZ Mode

5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan

Speed Setup

Human-oriented focal length/ speed adaptation

Power Up Action

Auto restore to previous PTZ and lens status

after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Video

Compression

H.265 / H.264 / MJPEG

Frame Rate

Main Stream:

Thermal: 1280x1024 / 720P / 400x300 @25/30fps

Visible: 1080P / 720P / D1 @25/30fps

Sub Stream:

Thermal: 640x512 / 400x300 @25/30fps

Visible: D1 / CIF @25/30fps

Bit Rate Control

CBR / VBR

Bit Rate

H.264: 640 ~8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto / ATW / Indoor / Outdoor / Manual

Noise Reduction

2D/3D DNR

Motion Detetion

Off / On (4 zone, Rectangle)

Region of Interest

Off / On (4 zone)

Electronic Image Stabilization

(EIS)

Off / On

Defog

Off / On

Digital Zoom

4x(19 levels)

Flip

180°

Mirror

Off / On

Privacy Masking

Off / On (4 area, Rectangle)

Audio

Compression

G.711A / G.711Mu / AAC / PCM

Intelligence

IVS

Tripwire, Intrusion

Advanced Intelligent Functions

Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification, Auto Tracking

Tracking Trigger Mode

Manual / Auto (alarm triggered)

Tracking Trigger Event

Targeting, Tracking, Recording, Snapshot, Alarm, etc.

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

Micro SD (256GB)

Memory status display (Normal / Error / Active / Formatting / Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

>IE8,

Management Software

Smart PSS, DSS

Smart Phone

Android, iOS

Certifications

Certification

CE (EN 60950:2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1 Port (CVBS/BNC)

Audio Interface

1/1 In/Out

RS485

Support

Alarm

7/2 In/Out

Electrical

Power Supply

AC 24V/3A±15%

Power Consumption

17W, Max. 38W (Heater, LEDs on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)) / Less than 95% RH

Ingress Protection

IP66

Construction

Casing

Metal

Dimensions

Φ240mm x 382mm (Φ9.45" x 15.04")

Net Weight

6.8Kg (14.99 lb)

Gross Weight

9.5Kg (20.94 lb)
