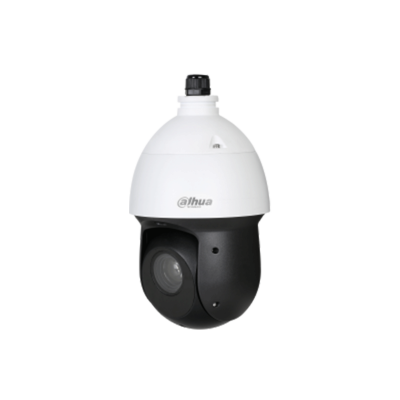

DAHUA 4MP 25x Starlight IR WizSense Network PTZ Camera> 1/2.8″ 4Megapixel CMOS

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

256 MB

RAM

512 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

100 m (328.08 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR; Off

Illuminator Number

4 (IR)

Lens

Focal Length

4.8 mm–120 mm

Max. Aperture

F1.6–F3.8

Field of View

H: 56.2°–2.6°; V: 32.5°–1.5°; D: 63.2°–3°

Optical Zoom

25x

Focus Control

Auto; Semi-auto; Manual

Close Focus Distance

1.5 m (4.92 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

2400 m (7874.02 ft)

948 m (3110.24 ft)

480 m (1574.80 ft)

240 m (787.40 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–100°/s

Preset Speed

Pan: 200°/s; Tilt: 100°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection

Yes

SMD

Yes

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream)

Streaming Capability

3 Streams

Resolution

4M (2560 × 1440); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/1080p/1.3M/720p (25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 32 Kbps–8192 Kbps
H.265: 32 Kbps–8192 Kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; Manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1

Network

Network Port

1 RJ-45 Port 10/100Base-T

Network Protocol

HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast; Multicast

User/Host

20 (Total bandwidth 64 M)

Storage

FTP; Micro SD card (512 GB); NAS

Browser

IE7 and later versions
Chrome
Firefox
Safari

Management Software

Smart PSS; DSS; IVSS; Configtool; NVR; Smart Player

Mobile Client

IOS; Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Alarm Linkage

Capture; preset; tour; pattern; recordings on SD card; alarm digital input; sending email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

2/1

Power

Power Supply

12 VDC, 3 A (± 10%)
PoE+ (802.3at)

Power Consumption

Basic: 12 W
Max.: 21 W (illuminator + PTZ working)

Environment

Operating Conditions

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤ 95%RH

Protection

IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Casing

Aluminum alloy ADC12

Product Dimensions

160 mm × Φ295 mm (6.30" × Φ11.61")

Net Weight

2.8 kg (6.17 lb)

Gross Weight

4.3 kg (9.48 lb)
