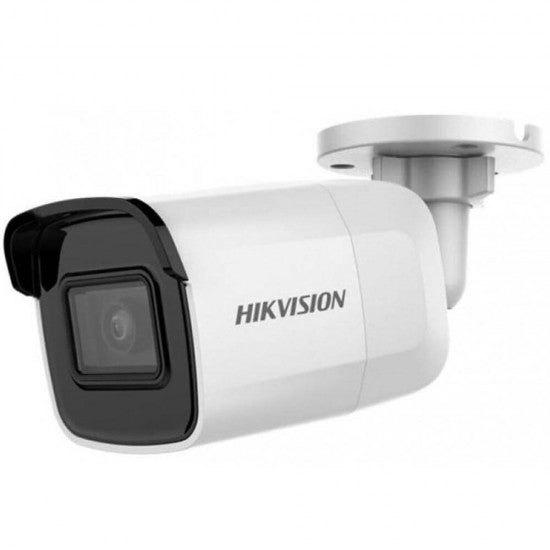

Hikvision 2-MP Infra-red Network Bullet Camera

Hikvision 2-MP Infra-red Network Bullet Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Support up to 256 GB SD card storage

Specifications:

• Camera
• Image Sensor1/2.7" Progressive Scan CMOS
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• FocusFixed
• Focal Length & FOV

  2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°

  4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

  6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°

• Lens MountM12
• ApertureF1.6

• Illuminator
• IR Wavelength850 nm
• IR RangeUp to 30 m

• Video
• Max. Resolution1920 × 1080
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50Hz: 25 fps (640 × 480, 640 × 360)

  60Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Region Of Interest (ROI)Support 1 fixed region for main stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• Network StorageSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in Micro SD slot, up to 256 GB
• Hardware ResetYes

• Event
• Smart EventLine crossing detection, intrusion detection

• General
• Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
• Camera Material

  Metal & Plastic



• Camera Dimension69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
• Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7)
• Camera WeightApprox. 350 g (0.8 lb.)
• With Package Weight

  Approx. 450 g (1.0 lb.)



• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

  French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

  Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

  Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware VersionV5.5.120
• Power Supply

  12 VDC ± 25%

  PoE: 802.3af, Class 3

• Power Interface

  Ø5.5 mm coaxial power plug



• Power Consumption And Current

  12 VDC, 0.4 A, max. 5 W

  PoE (802.3af, 36 to 57 V), 0.2 A to 0.15 A, max. 6.5 W

• Power Consumption And Current12 VDC, 0.3 A, max. 4 W; PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W

• Approval
• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)
