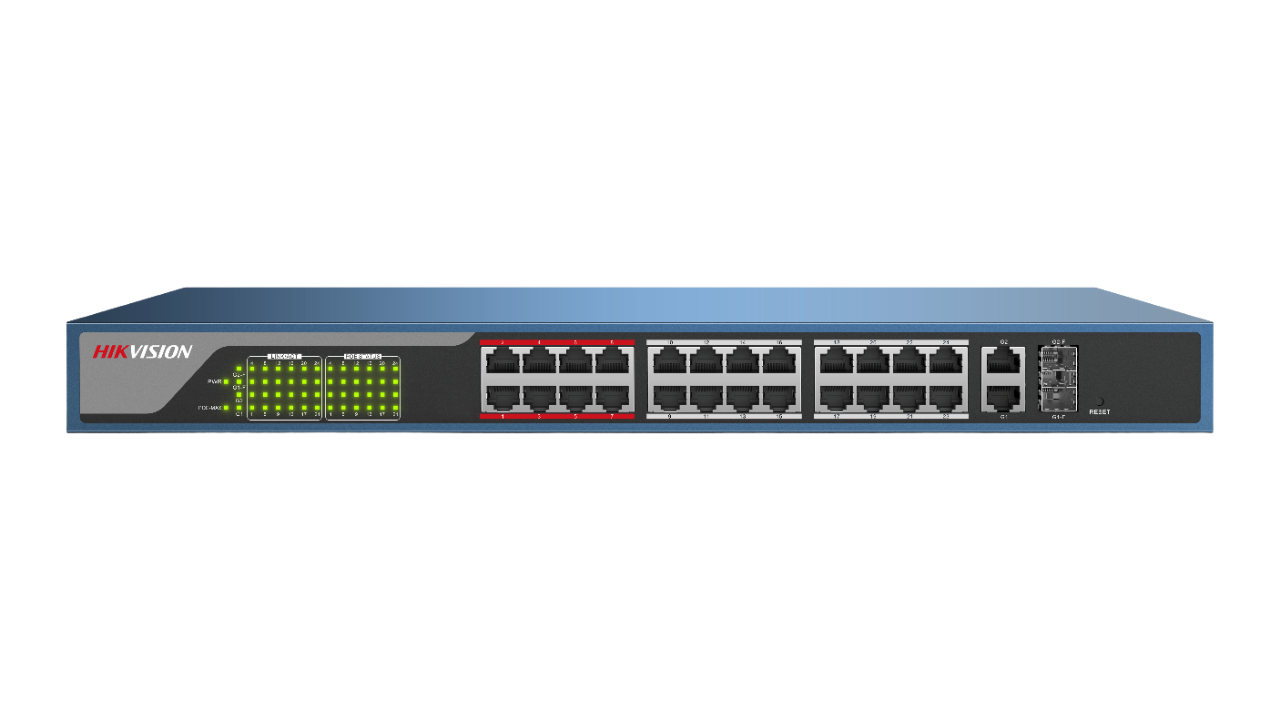

Hikvision 24 Port Fast Ethernet Web POE Switch

Hikvision 24 Port Fast Ethernet Web POE Switch

• Layer 2 network switch designed for video data transmission
• 24 x 10/100 Mbps PoE ports and 2 x 10/100/1000 Mbps combo uplink ports
• Web management: supports intelligent management such as VLAN, link aggregation, QoS, loop guard via STP, SNMP, etc. to reduce project difficulty and time, save costs and protect customer investment
• IEEE 802.3 af & at high POE power supply
• Maximum 250 m long distance PoE transmission
• VIP port transmission priority
• Safe and reliable using 4 KV high surge protection;

Specifications:

• General
• Operating Temperature0 ºC to +40 ºC (+32 ºF to +104 ºF)
• Storage Temperature-40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Power Supply100 to 240 VAC, 50/60Hz
• Operating Humidity10% to 90% (Relative Humidity, without condensation)
• Power Consumption≤440W

• Performance
• Store-And-ForwardSupport
• MAC Address Table4K
• MAC Address LearningAutomatic learning/Aging
• Backplane Bandwidth8.8 Gbps

• PoE
• Switch Max. Power370W
• Port Max. Power30W
• PoE StandardIEEE 802.3af, IEEE802.3at
• PoE PortPort 1 to 24
• PoE Cable CoreSupports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order.
• Port Max. Power30W
• Switch Max. Power370W

• Port
• High-Priority PortPort 1 to 8
• 1000 Mbps SFP2 (multiplex)
• 10/100/1000 Mbps RJ452
• 10/100 Mbps RJ4524

• Standard
• Network StandardIEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z

• Network
• Network Media

  Ethernet: UTP/STP of CAT3 or above

  Fast Ethernet: UTP/STP of CAT5 or above

  Gigabit Ethernet: Recommended UTP/STP of CAT5e or CAT6

  1000 Base-SX: MMF (Multi-Mode Fiber)

  1000 Base-LX: MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)

• Lightning-Proof Ranking

  Port: 4 KV

  Power supply: 6KV

• Data Transfer Rate

  Ethernet: 10 Mbps (half-duplex)/20 Mbps (full-duplex)

  Fast Ethernet: 100 Mbps (half-duplex)/200 Mbps (full-duplex)

  Gigabit Ethernet: 2000 Mbps (full-duplex)

• Environment
• Storage Humidity5% to 90% (Relative Humidity, without condensation)
