Ajax Transmitter

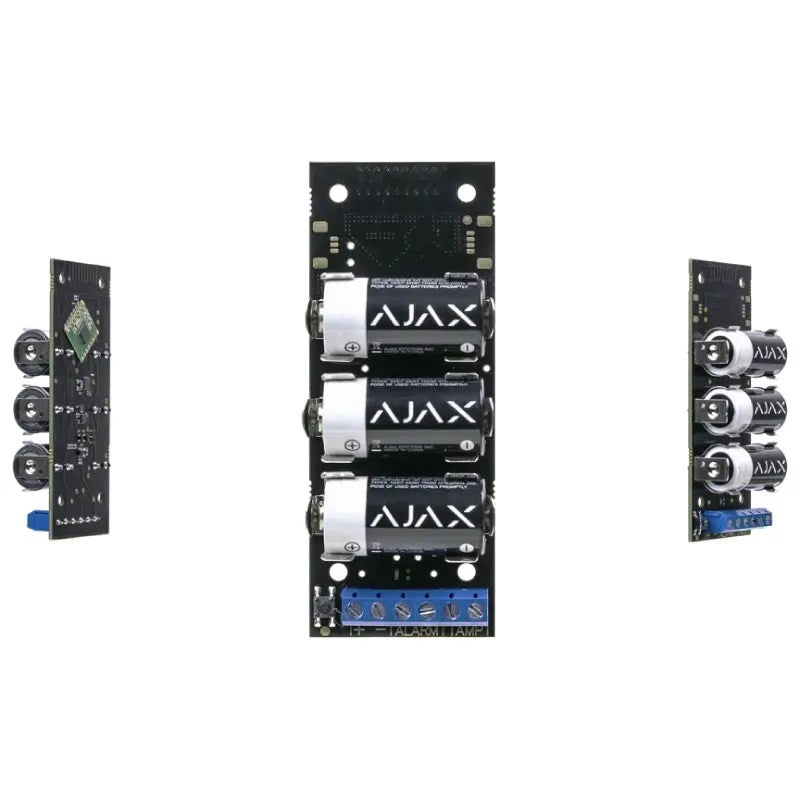

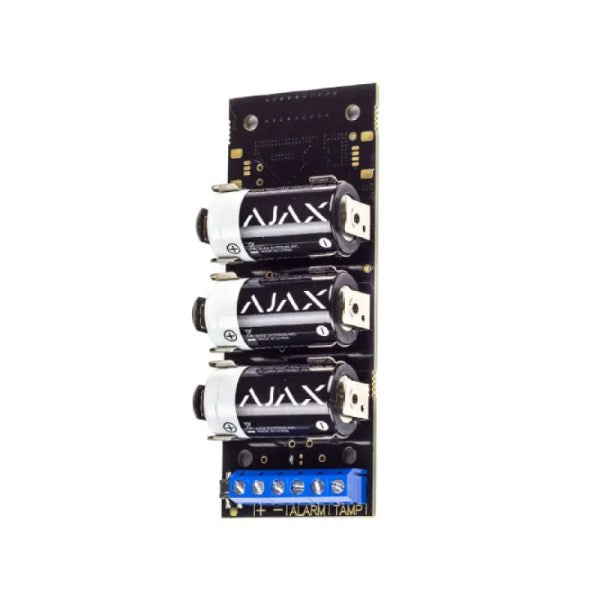

The Ajax transmitter is used to integrate third party wireless devices with wired inputs into the Ajax system.
Some popular wireless devices include the following:
- Takex 180 kit – A 180 degree outdoor PIR with up to 12m range
- Optex BX80 Kit – A Dual side PIR with 12m range on either side (total 24m)
- Optex BXS-RAM kit – An adjustable dual side outdoor PIR with 12m range on either side (total 24m) and includes Anti-Masking
- Optex HX40 Kit – A High Mount outdoor PIR used for detecting movement over e.g. patio furniture or other obstructions that would ordinarily block the detection area of low mount PIR’s
It is also used to receive alarm notifications from electric fence energisers, access keypads etc.
- Ajax wireless transmitter for 3rd-party detectors

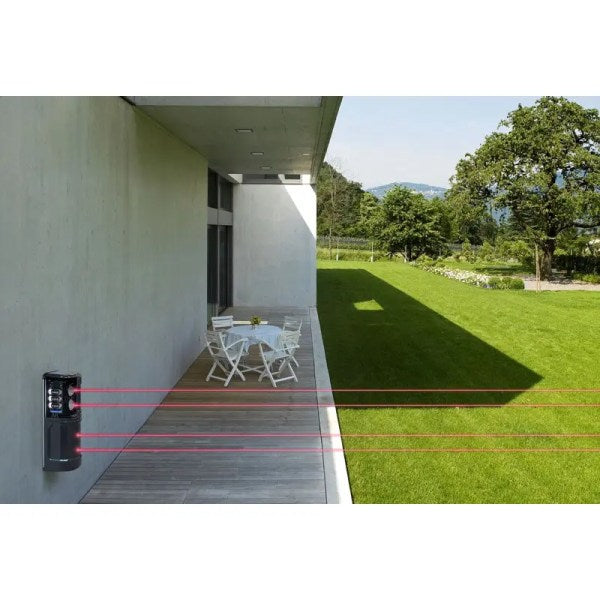

- Input for wired connection of outdoor motion detectors, IR beams and electric fence energisers

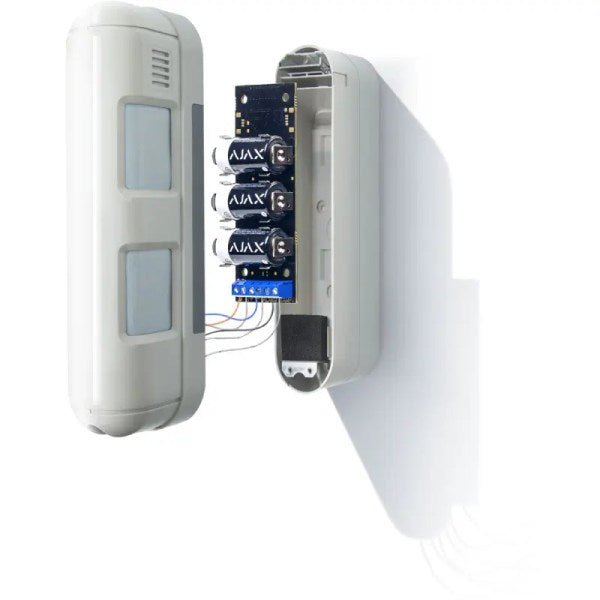

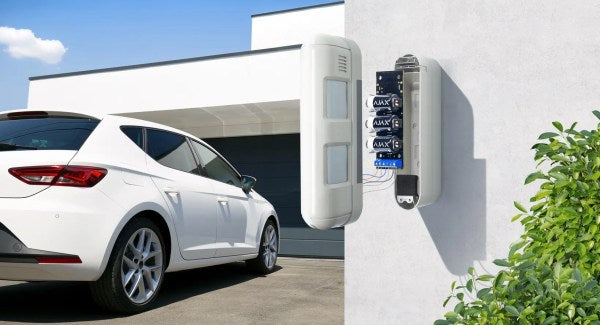

- Fits in most popular wireless outdoor detectors – In some instances, a sealed outdoor enclosure may be required
- Tamper alarm for Transmitter and external detector
- Easy installation and activation
Additional information
| WEIGHT | 74 g |
|---|---|
| DIMENSIONS | 100 × 39 × 22 mm |
Technical Specifications
| Classification | Module for third-party detector integration |
| Device type | Wireless |
| Installation method | Indoors/outdoors |
| Compatibility | Operates with all Ajax hubs and range extenders |
| Alarm input | 1 |
| Tamper input | 1 |
| Power supply current | Terminals +/− |
| Power supply output | 3.3V |
| Battery charge indication | Available |
| Adjustable alarm types | Intrusion Fire Medical help Panic button Gas |
| Alarm signal delivery time | 0.15 s |
| Power supply | Battery: Three CR123A batteries, Power supply voltage: 3V |
| Battery life | Up to 5 years
|
| Jeweller radio technology | Communication range with central unit — up to 1,600 m in an open space Two-way communication between devices Operating frequencies — 868.0 – 868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Device polling period — 12 – 300 sLearn more about Jeweller |
| Temperature sensor | Available |
| Operating temperature range | -25°С to +50°С |
| Permissible humidity | Up to 75% |
| Anti-sabotage | Protection against fraud Jamming detection Accelerometer to detect removal |
| Remote setting and testing | + |
| Dimensions | 100 x 39 x 22mm |
| Weight | 74 g |
| Warranty | Replacement and repair within 24 months of the date of purchase. Batteries are not covered under the warranty |
| Service life | 10 Years |
| Complete set | Transmitter Three CR123A batteries (pre-installed) Installation set User’s guide |
